Please see instructional video#3. How to use Titan Design Solid Abutment for Straumann Implant

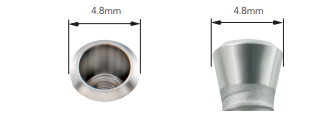

 Titan Implants' Solid Abutment can be used for Straumann® RN & WN Tissue Level implants that have no octagon, just an internal non-engaging circular geometry or if the dentist does not want to engage the internal octagon of the current Straumann® SynOcta®  implant.  Since there are no implant level analogs or impression copings for the circular non-engaging Tissue Level implants, restore the implant by torquing in the solid abutment and taking an abutment impression using the solid abutment transfer cap. Please click here for corresponding solid abutment parts.

 The Titan solid abutment has ring grooves designed for mechanical restoration. The solid abutment comes in two different shapes. One has a flat side (click on link) with mechanical retention grooves and the other is called the Titan Design which has a hex instead of a flat, offering better crown retention. Both work well, we recommend the Titan Design solid abutments.

 Used in both anterior and posterior areas of the mouth for cement-retained crown and bridge restorations

The Titan One Stage compatible system is a unique solution for the problems inherent to the tapered Cementable abutment.

Increase prosthetic retention.

 The Titan design incorporates a hexed collar that more than doubles prosthetic retentiveness. It also incorporates a deep circumferential groove just above the hex portion that also contributes to retentiveness and is an integral component of the transfer system.

 Attachment tools

 The Titan Design Cementable abutment system requires a socket wrench and a hand tightening tool that fits over the socket wrench. These tools will allow the dentists to easily achieve hand tightening of more than 20Ncm.

You may also insert the socket wrench into a torque wrench and use that assembly to tighten the attachments. 20Ncm is all the force that is necessary since our attachments are precisely manufactured.

Top surface receptacle

The top surface has an internally threaded receptacle that can be used in the following ways:

 Attach the enclosed inserting screw to easily carry the abutment to the implant.

 Insert implant locators to help judge proper angulation corrections

 Convert or construct very retentive fixed detachable cases on One Stage implants

 Transfer system

The system includes Titan’s highly accurate single piece transfer copings.

 The system is best used with a closed tray impergum impression.

 Non-parallel placements of implants

 Often attachments have to be modified due to non-parallel replacements.

Requires Insertion Wrench SKU#TN-48SW:

 To fit original Straumann torque wrench:

Titan Design Solid Abutment Socket Wrench can be used with Straumann Torque Wrench Adaptor

SKU# IS-TWSHA:

OR

To fit original Nobel Biocare torque wrench:

Titan Design Solid Abutment Socket Wrench can be used with Nobel Biocare Torque Wrench Adaptor

SKU: NB-TWSHA:
