Straumann® Compatible Abutments & Parts

Choose your platform

Straumann tissue level parts are ordered by neck platform, not implant body diameter. Match the connection on the radiograph or surgical record. Parts do not interchange between connections.

RNRegular Neck 4.8mmsynOcta internal octagonShop parts ↓WNWide Neck 6.5mmsynOcta internal octagonShop parts ↓SolidRN & WN solid abutmentNon-octagonal seatShop parts ↓NNNarrow Neck 3.3mmExternal octagonShop parts ↓

Schematic top views, not to scale.

RN 4.8mm

Regular Neck synOcta Compatible

The most widely placed tissue level platform

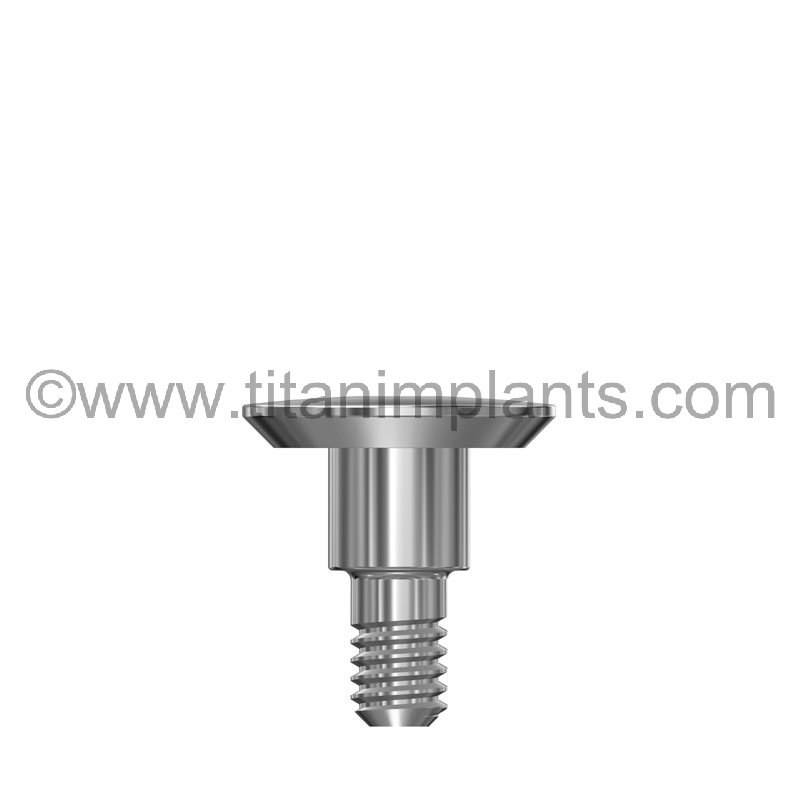

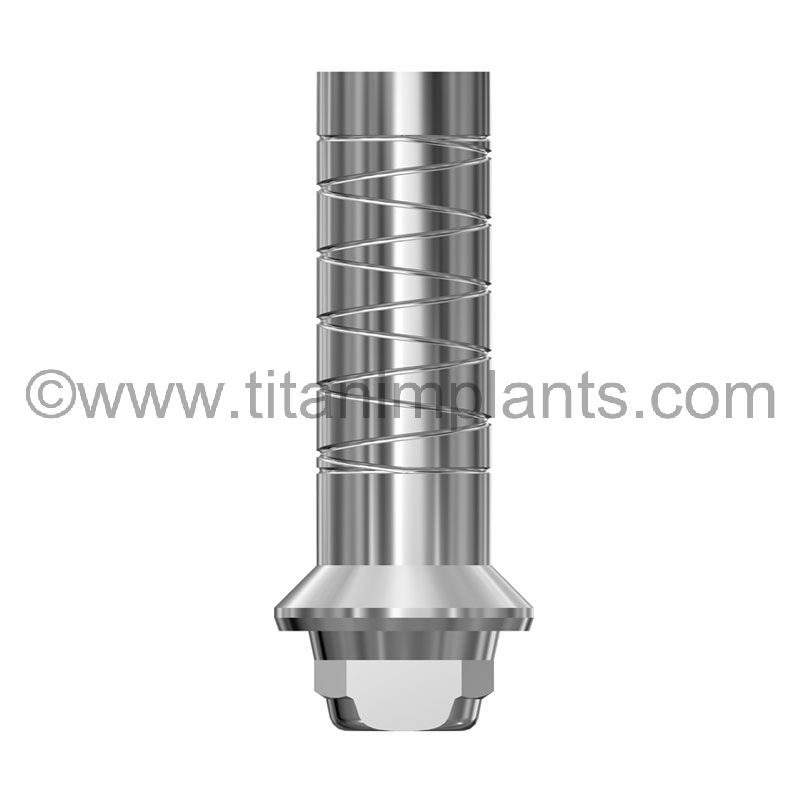

Healing AbutmentITI-48HA-A ›Abutment Impression CopingITI-48SOIAC ›Temporary AbutmentITI-48SOTA ›Implant AnalogITI-48SOIR-AL ›

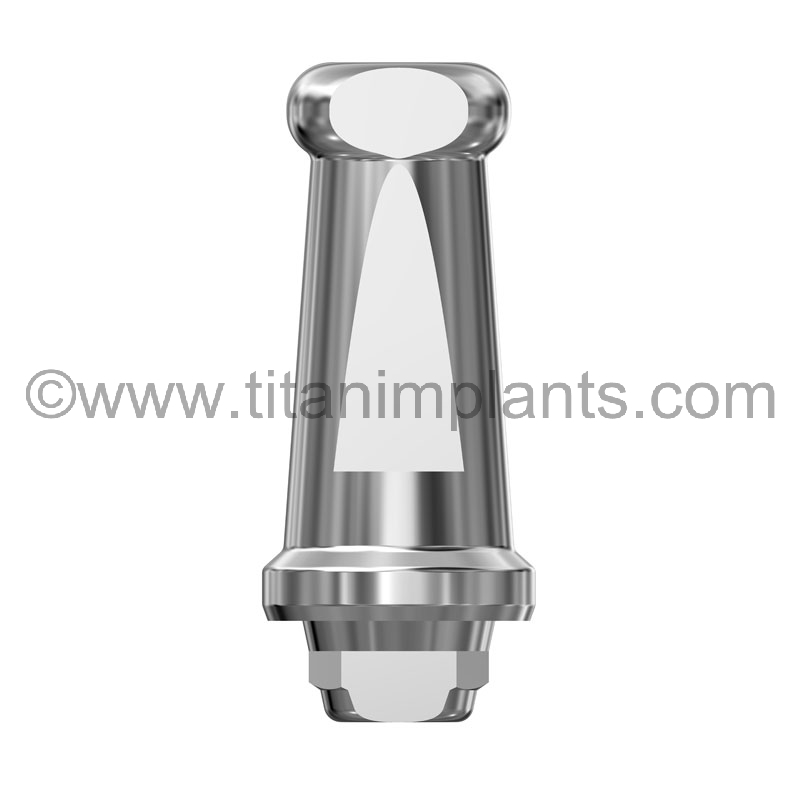

Titan design · RN and WNOne part: impression coping and final abutmentTitan’s synOcta abutment impression copings (ITI-48SOIAC RN, ITI-65SOIAC WN) remove the need for a separate gold custom abutment.

1Take the impressionUse the coping as a closed-tray transfer.

2Adjust in the labPrep the same coping to the final form.

3Seat as the abutmentFewer parts and less lab time.

Watch the instructional video →

All synOcta compatible components use a 0.050″ hex (1.27mm) screwdriver.

WN 6.5mm

Wide Neck synOcta Compatible

For molar sites that need a broader emergence profile

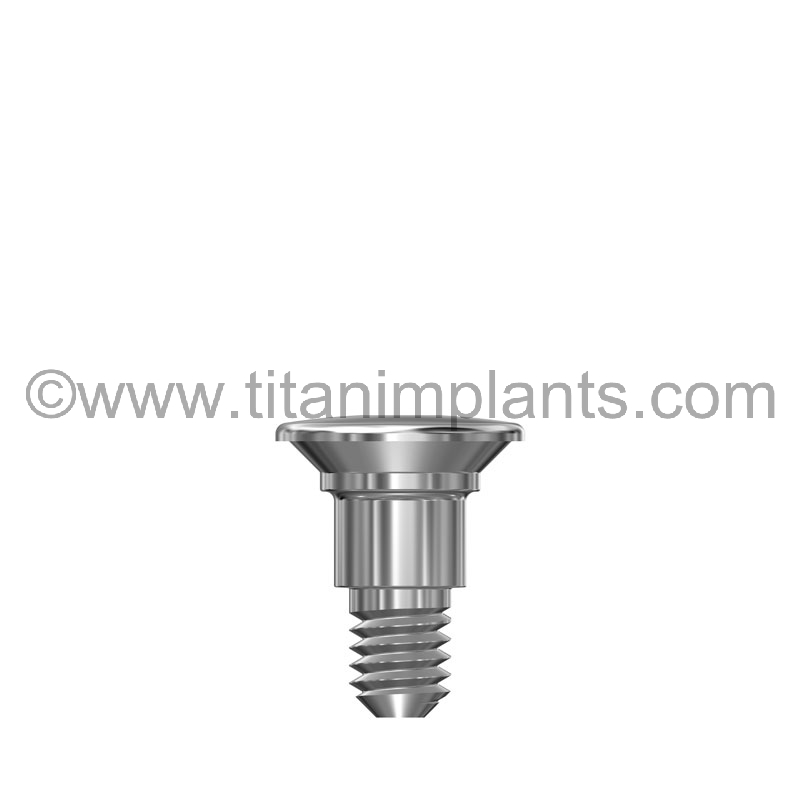

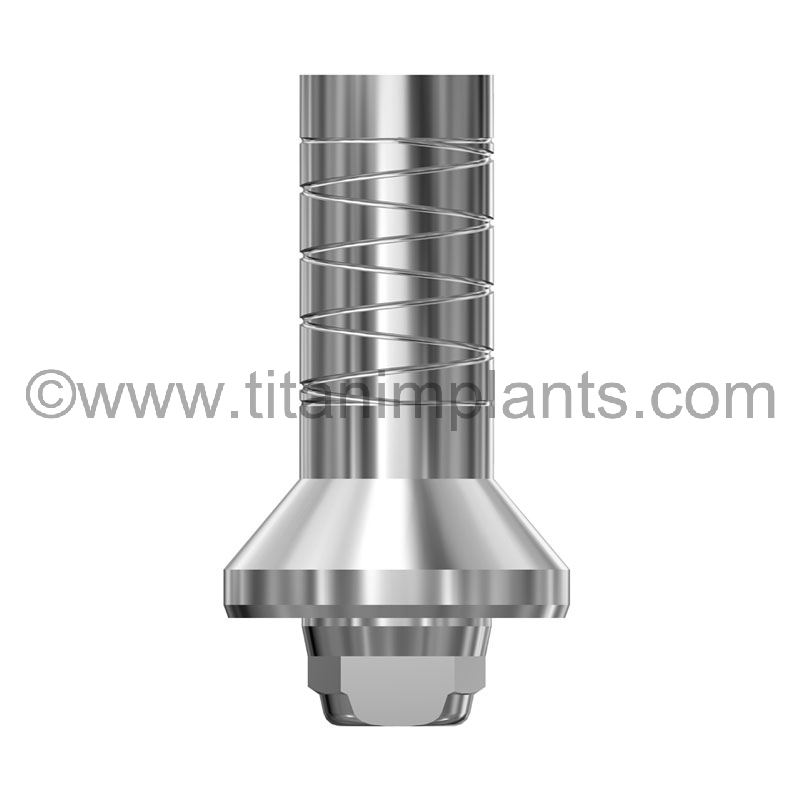

Healing AbutmentITI-65WNHA-A ›Abutment Impression CopingITI-65SOIAC ›Temporary AbutmentITI-65SOTA ›Cover ScrewITI-65WNCS ›

RN 4.8mm & WN 6.5mm

Solid Abutment (Non-Octagonal) Compatible

For tissue level implants where the octagon is not engaged

Titan makes two RN solid abutment systems. Each abutment has its own analog, transfer coping and castable — order the set that matches your abutment.

Flat-side set · retention grooves · video

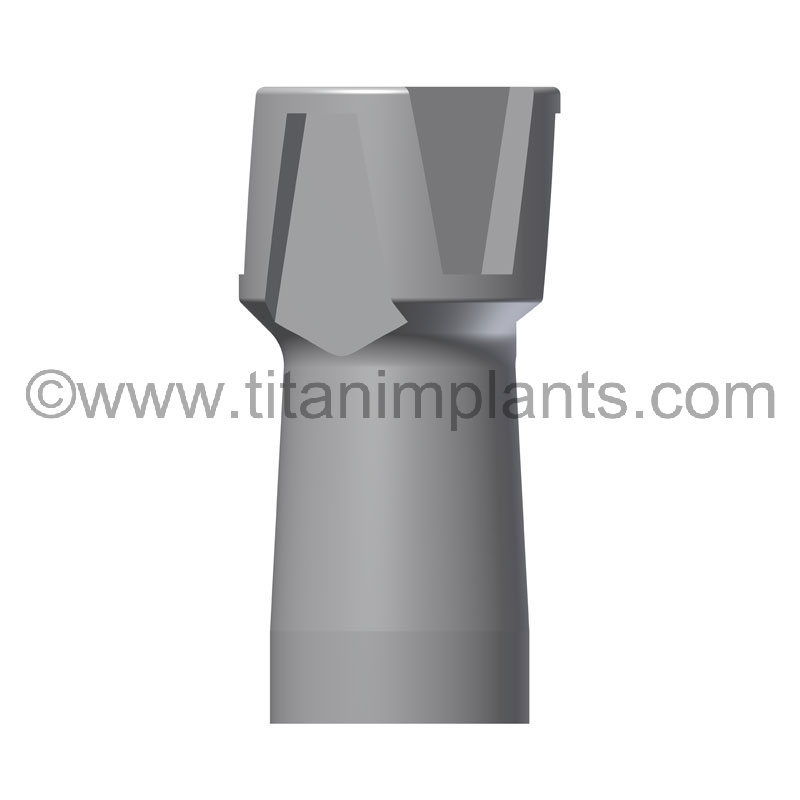

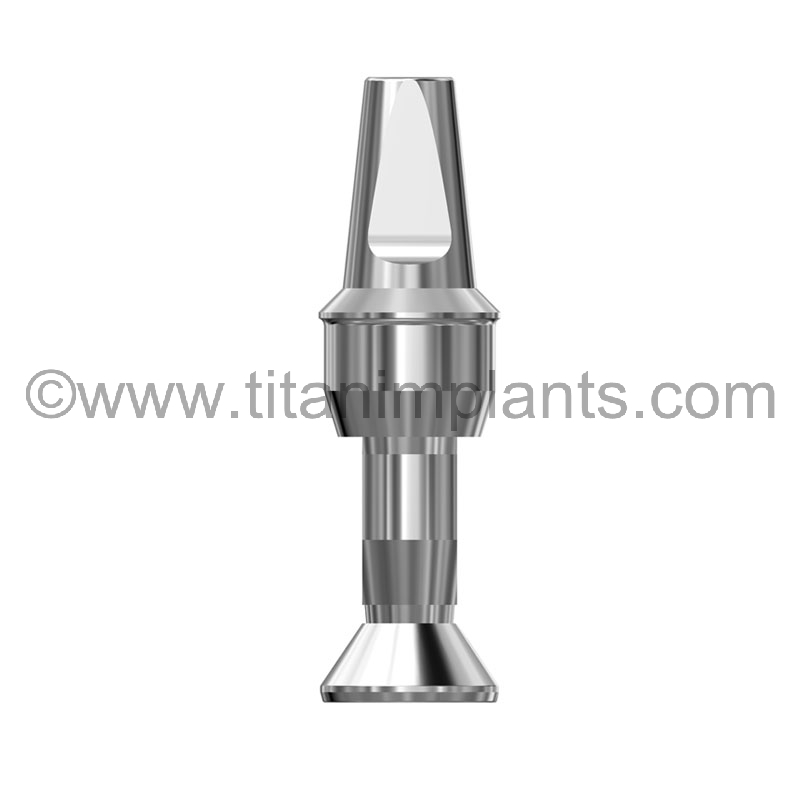

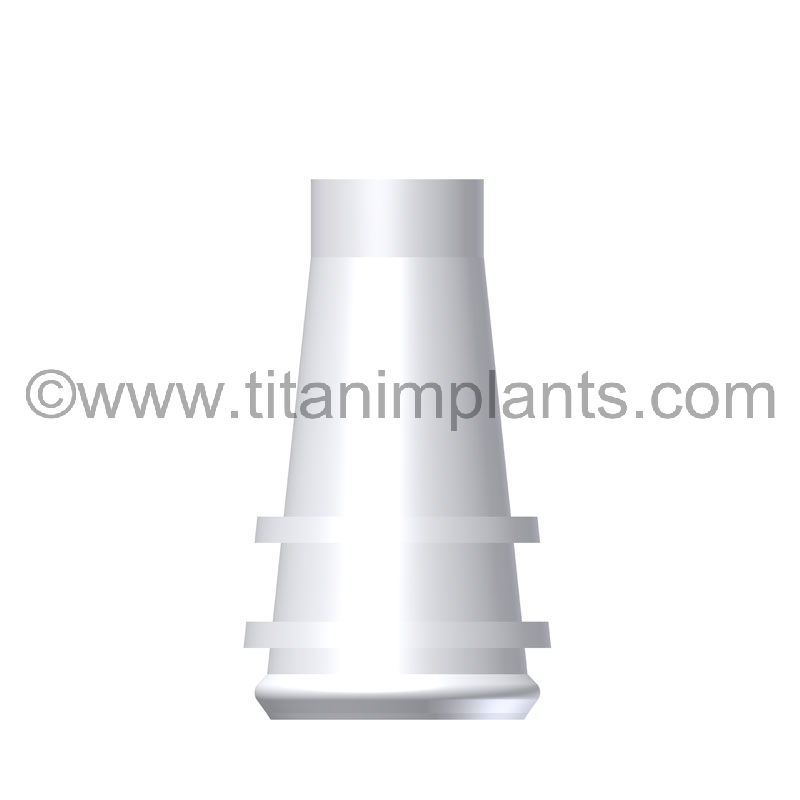

Solid AbutmentITI-ISA ›+AnalogIS-SAA-AL ›+Transfer CopingIS-RNTC ›+Castable CopingIS-RNSAPS ›

Titan Design hexed-collar set · hex surface for crown anti-rotation · video

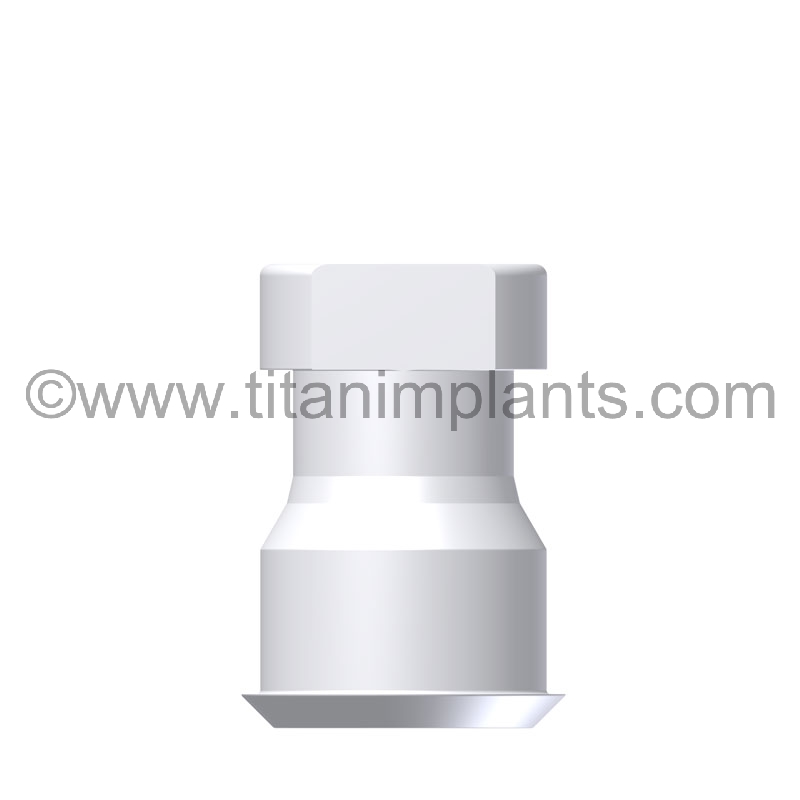

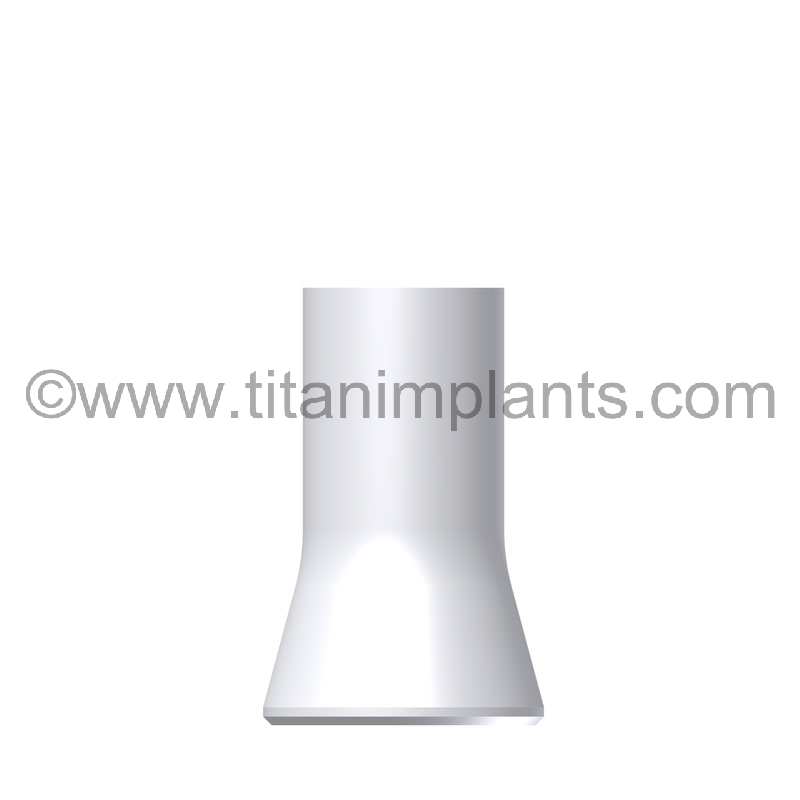

Hexed-Collar AbutmentTN-ISA ›+AnalogTN-SAA ›+Transfer CopingTN-48TC ›+Castable SleeveTN-48PSH ›

Wide Neck 6.5mm solid abutments

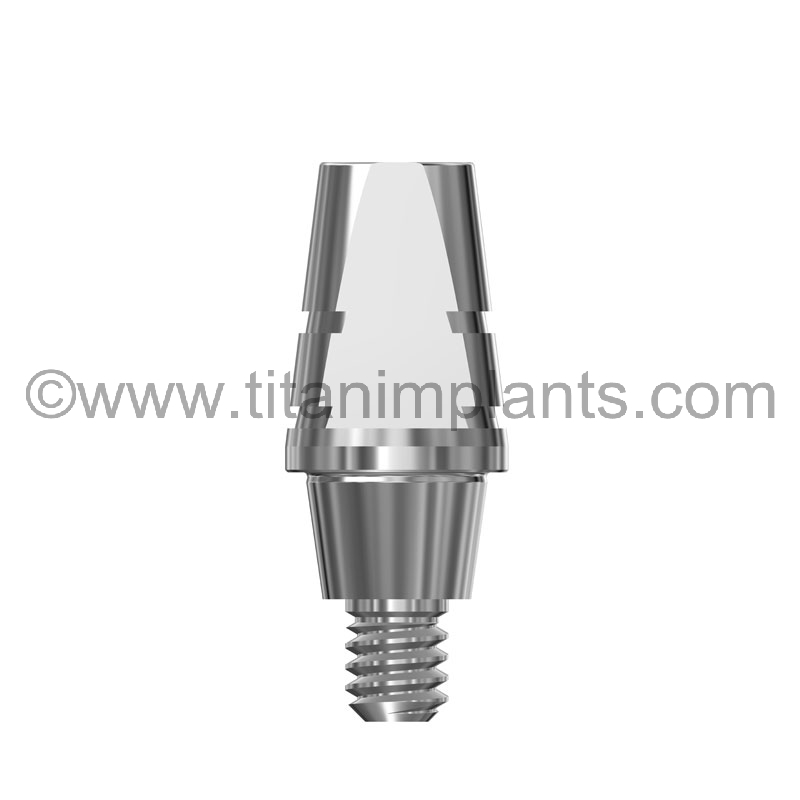

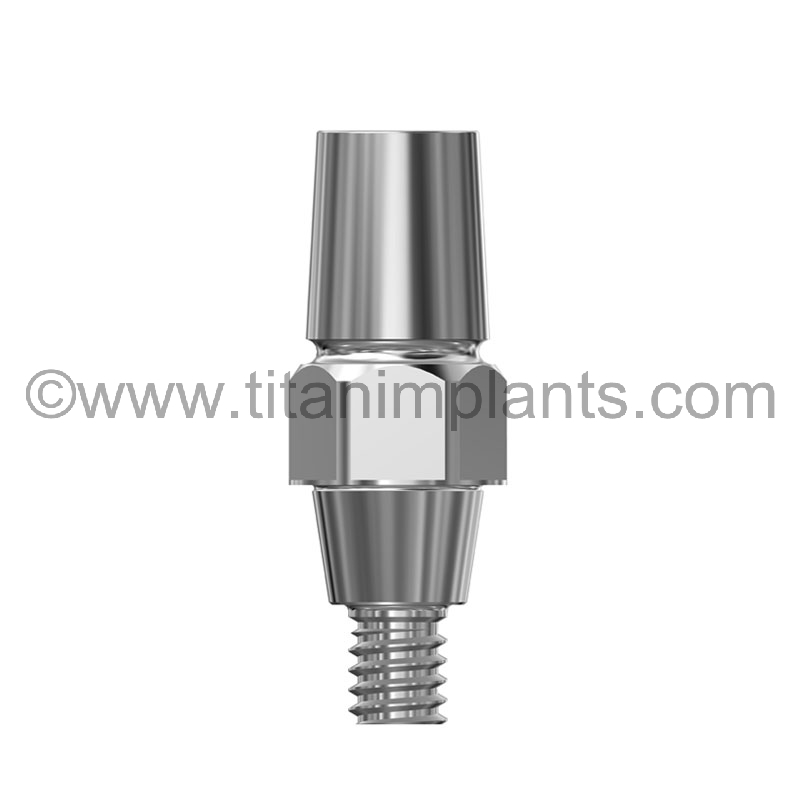

Solid Abutment, Flat SideITI-WNISA ›Solid Abutment, Hexed CollarTN-WNISA ›Transfer Coping (4.0mm)IS-WNSATC ›

Solid abutments do not engage the internal octagon of synOcta implants.

NN 3.3mm

Narrow Neck Compatible (External Octagon)

Healing abutments, abutments, bar posts, castables, analogs and ball abutments

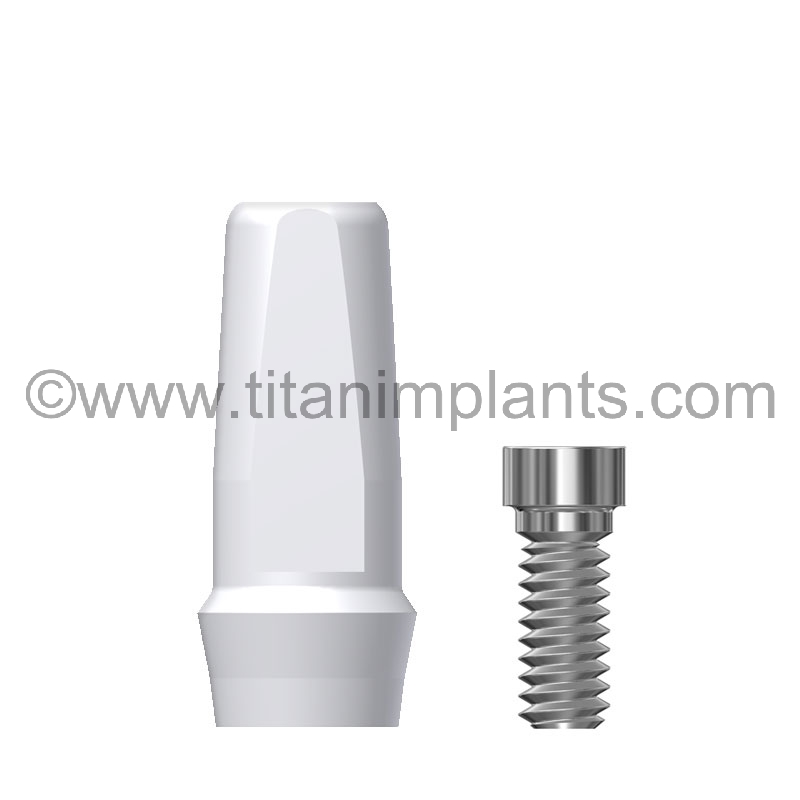

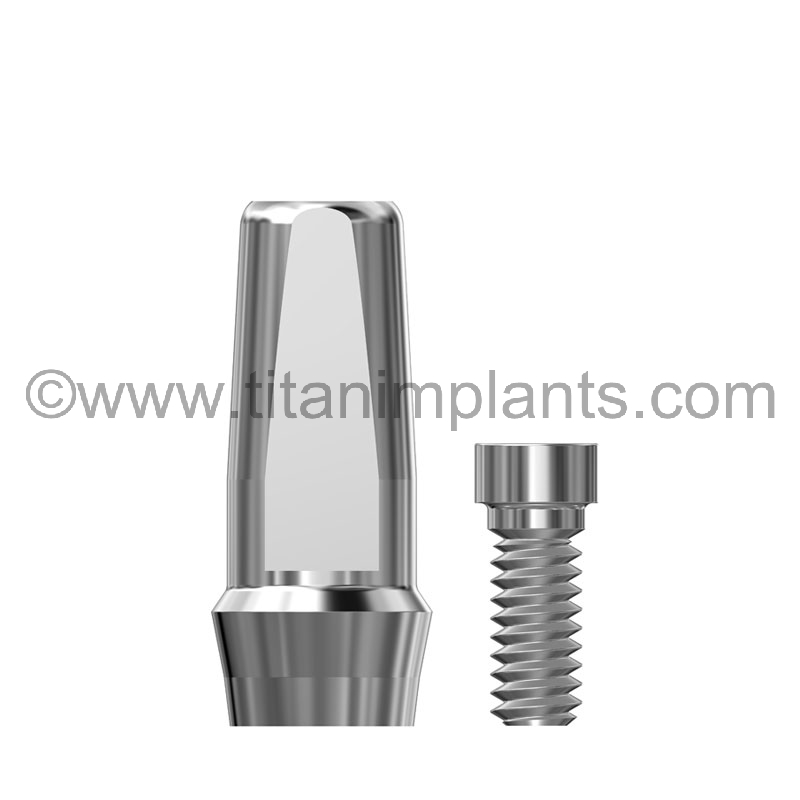

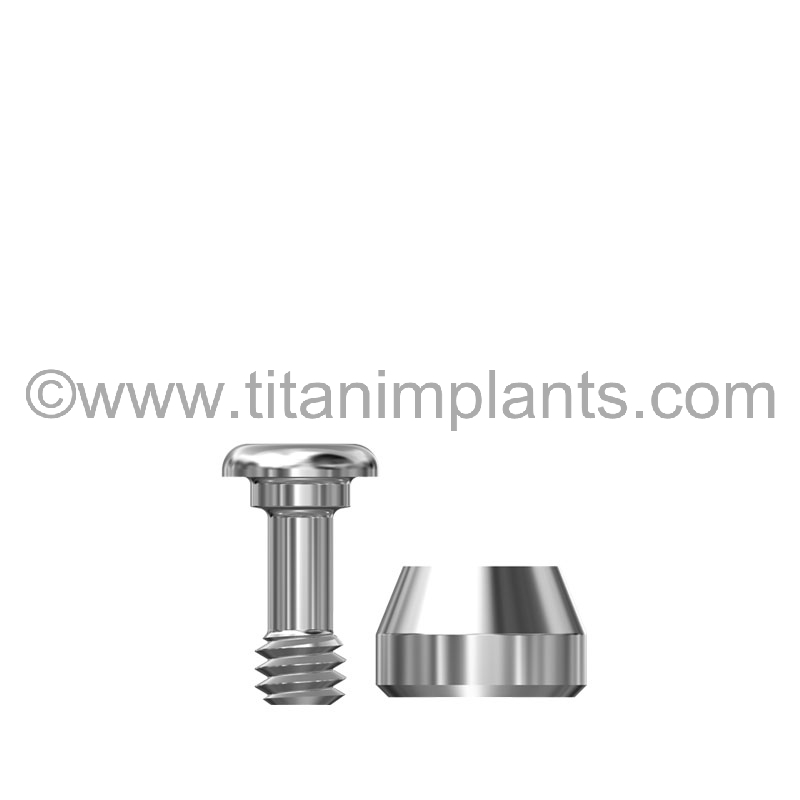

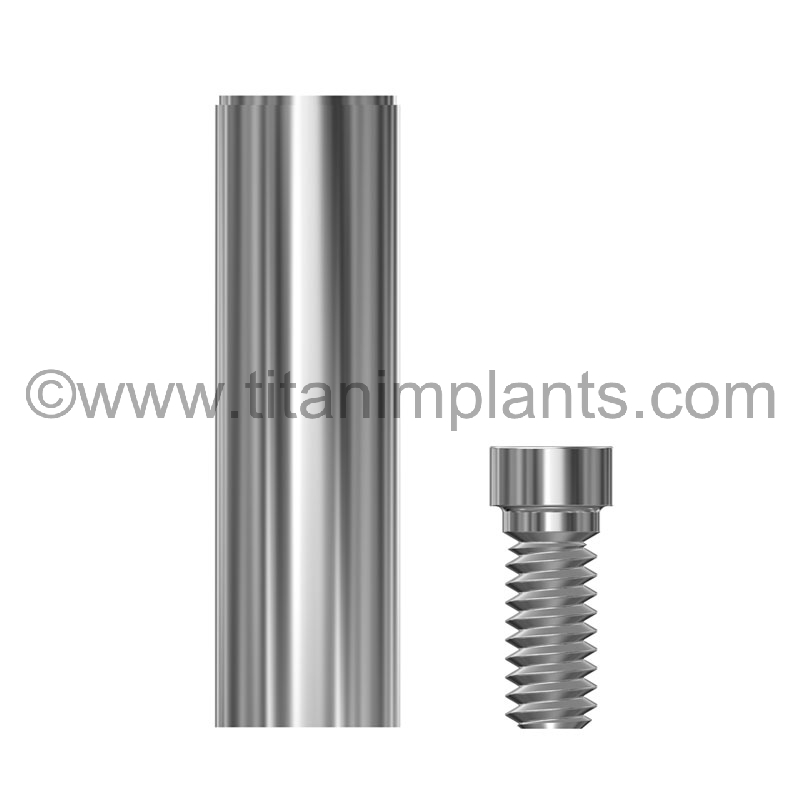

Healing AbutmentITI-3NNHS ›Straight Locking AbutmentITI-3SLIAF-01-2.0 ›Bar PostITI-35CA-12 ›Castable UCLA SleeveITI-35PSL ›

Titan designImplant Locator Pin: seat components in three stepsIn the lab, wax-ups slide on and off the analog without shifting.

1Thread the pinHand-thread into the implant using the serrated handle.

2Slide on the partThe tight tolerance holds the abutment or coping in alignment.

3Swap for the screwRemove the pin and insert the final titanium screw.

Shop the locator pin · Watch the video

Frequently Asked Questions

What screwdriver do Titan Straumann compatible abutments use?

Titan’s Straumann compatible abutment screws use a 0.050″ hex (1.27mm) screwdriver. Titan sells a compatible hex driver and a square-head screwdriver adapter for the Straumann torque wrench.

How do I tell a synOcta implant from a non-octagonal one?

A synOcta tissue level implant has an internal octagon recessed inside the neck. A non-octagonal implant has a plain internal seat with nothing to engage. If the radiograph is unclear, call us with the fixture details and we will identify it.

What titanium grade does Titan use?

Titan’s titanium prosthetic components are machined from Grade 23 titanium (Ti-6Al-4V ELI), the standard medical-grade alloy used across the implant industry.

Can I order using a Straumann part number?

Yes. Use the Straumann part number lookup and click the matching Titan part. If the number is not listed, email it to support@titanimplants.com and we will confirm the compatible Titan component.

How quickly do orders ship?

In-stock components ordered before 4:00 PM ET ship the same business day from our facility in Bergenfield, New Jersey.

Watch all Straumann compatible instructional videos →
