TG Connection

3i TG Hex Abutment Compatible Parts

TG Hex Abutment kits and restorative components for Biomet 3i TG Osseotite implants, 4.8mm and 6.5mm platforms. Abutments machined from Grade 23 titanium in Bergenfield, New Jersey.

What's in the mouth? What to order

The TG implant connection is non-engaging, so the implant is restored at the abutment level. Titan does not carry scan bodies for any implant system.

Implant only, nothing seated

3i TG Osseotite implant, non-engaging connection with no index

No coping fits the implant itself.
Order: a TG Hex Abutment Kit (4.8mm or 6.5mm) by phone, 1-201-439-0470.

TG Post seated

3i TG Post abutments TGPF04, TGPF55 and TGPF07: tapered post, rounded head, no hex

Non-engaging; it can't be impressed over.
Order: T-TGAD driver to remove it, then call to order a TG Hex Abutment Kit.

Original 3i TG Hex Abutment seated

No kit needed. 4.8mm only.
Order: T-48TGHAA analog, T-48TGIAIC coping, T-48TGIAPS castable.

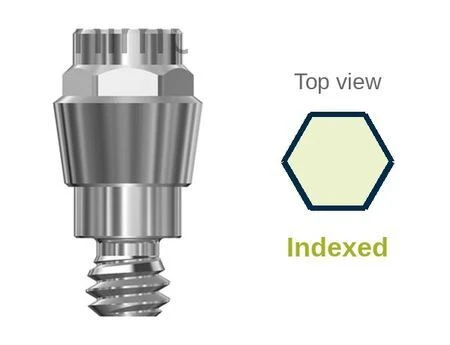

Titan Design TG Hex Abutment seated

Titan Design TG Hex Abutment with external hex index

Not interchangeable with original 3i parts.
4.8mm: TN-48TGHAA-AL, TN-48TGIAIC, TN-48TGIAPS
6.5mm: analog, coping, TN2-65TGHAPSH

Not sure what's seated? Call us with the implant reference number from the patient record.

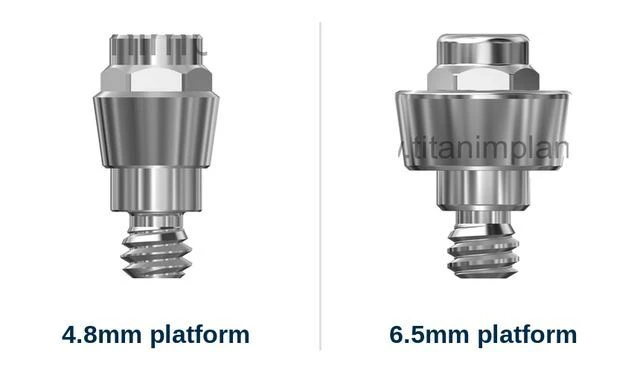

TG Hex Abutment Kits

Titan Design TG Hex Abutments, 4.8mm and 6.5mm platforms

4.8mm kit details (T-48TGHIA) → 6.5mm kit details →

Order kits by phone

1-201-439-0470 | Mon–Fri, 8:30am–5:00pm ET. Have the implant reference number from the patient record ready.

Sold as a kit only, to dentists only, by phone. Kits are not returnable. Each kit includes:

Abutment

Analog

Castable

Driver

Coping

Also recommended: Thumb Knob, 30Ncm Torque Wrench.
Technique videos: screw-retained and cement-on crown →

Identify the Implant Platform

3i TG Osseotite implants, 4.8mm platform: 3.25mm, 4.0mm and 5.0mm diameters, 1.8mm and 2.8mm collars

3i TG Osseotite implants, 6.5mm platform: 5.0mm and 6.0mm diameters, 1.8mm collar

TG = trans-gingival: the implant's 1.8mm or 2.8mm collar passes through the tissue. The 5.0mm implant was made on both platforms, so confirm with the reference number.

Show TG implant reference numbers by platform

Platform	Implant Ø	Collar	Reference Numbers
4.8mm	3.25mm	1.8mm	TG2385, TG2310, TG2311, TG2313, TG2315
4.8mm	3.25mm	2.8mm	TG3385, TG3310, TG3311, TG3313, TG3315
4.8mm	4.0mm	1.8mm	TG2485, TG2410, TG2411, TG2413, TG2415
4.8mm	4.0mm	2.8mm	TG3485, TG3410, TG3411, TG3413, TG3415
4.8mm	5.0mm	1.8mm	TG2585, TG2510, TG2511, TG2513, TG2515
4.8mm	5.0mm	2.8mm	TG3585, TG3510, TG3511, TG3513, TG3515
6.5mm	5.0mm	1.8mm	TG5685, TG5610, TG5611, TG5613
6.5mm	6.0mm	1.8mm	TG685, TG610, TG611, TG613

Reading the number (4.8mm platform): first digit = collar (2 = 1.8mm, 3 = 2.8mm), second = diameter (3 = 3.25, 4 = 4.0, 5 = 5.0mm), last two = length (85 = 8.5mm, 10, 11 = 11.5mm, 13, 15). TG56xx and TG6xx are the 6.5mm platform.

Chairside Parts and Tools

Healing Abutments

4.8mm | 6.5mm

Ball Head Abutment

Overdentures, 4.8mm

TG Post Driver (T-TGAD)

Removes TG Posts

Thumb Knob (TK)

Recommended with the kit

Frequently Asked Questions

Do you carry a scan body or impression coping for the 3i TG implant?

We do not carry scan bodies for any implant system. The TG implant connection is tapered and non-engaging, so no coping can index to the implant. Seat a TG Hex Abutment (sold as a kit) and take a conventional impression with the kit's coping.

Is the TG Hex Abutment sold separately?

No. The Titan Design TG Hex Abutment is sold as a kit only: abutment, analog, castable abutment (plastic sleeve), driver, and impression coping. Kits are sold to dentists only, are not returnable, and are ordered by phone at 1-201-439-0470.

I have an original 3i TG Hex Abutment seated. What do I order?

No kit needed. Order T-48TGHAA (analog), T-48TGIAIC (coping), and T-48TGIAPS (castable). Titan Design TN- components do not fit the original 3i abutment.

How do I identify a TG Post?

A one-piece tapered post with a small rounded head and no hex, in 4mm (TGPF04), 5.5mm (TGPF55), or 7mm (TGPF07) heights, anodized by length. Remove it with the TG Post Abutment Driver (T-TGAD).

Which implants do TG components fit?

Biomet 3i TG Osseotite implants. 4.8mm platform: 3.25, 4.0, and 5.0mm implants. 6.5mm platform: 5.0 and 6.0mm implants. The 5.0mm came on both platforms, so check the reference number.
