IMZ Interpore External Hex Compatible

IMZ® Hex Head compatible external hex parts

For Interpore IMZ Hex Head implants, 3.3 and 4.0 mm. Both diameters take the same parts.

Call 1-201-439-0470

Shop by part

Healing abutment

Cover screw

Straight abutment

Post abutment

Which IMZ do you have? The Hex Head has a 2.7 mm external hex on top. The Original is flat on top with no hex. They take different parts.

Ships todayOrders by 4:00 PM ET ship same business day
Made in the USAMachined in Bergenfield, NJ
FDA-clearedCompatible prosthetic components
Since 2000Help matching parts: 1-201-439-0470

IMZ Hex Head 3.3 and 4.0 mm

Both diameters, 3.3 and 4.0 mm, have the same 2.7 mm external hex, 0.7 mm high. Every part here fits both.

IMZ Hex Head implant: side view and top view showing the 2.7 mm external hex, 0.7 mm hex height, 2 mm internal thread and 3.3 or 4.0 mm diameter — The 2.7 mm external hex on top is what makes it a Hex Head. If the top is flat with no hex, see the IMZ Original parts.

Healing abutmentT-4HA-IMZ

Cover screwT-4HA-A-1.0-IMZ

Straight abutmentT-4SLIAF-IMZ

Post abutmentT-4PA-IMZ

Post abutment, bite registrationT-4PABR-IMZ

Simple Step abutmentT-4ESA-IMZ

Temporary abutmentT-4TA-IMZ

Impression coping, guide pinT-4IIC-IMZ

Impression post, closed trayTN-4OPIP-IMZ

Implant analogT-4IAT-IMZ

UCLA plastic sleeve, hex and non-hexT-4PS-IMZ

Ball abutmentT-4BHA-IMZ

Bar abutment (laser-weld)NB-4CA-12-IMZ

Multi-unit abutment, engagingNB-MCAS-IMZ

Multi-unit abutment, non-engagingBM-4MUA-CM-IMZ

Ball abutment analogSRS-43BHAA

For the multi-unit abutment

MUA bar abutment (laser-weld)NB-MUABP

MUA temporary sleeveNB-MUTAS

MUA analogNB-3.3/4.0MCR

MUA impression copingNB-3.3/4.0MIC

Straight Locking or Simple Step?

Both are straight, engaging titanium abutments for the IMZ Hex Head platform. What differs is what you choose.

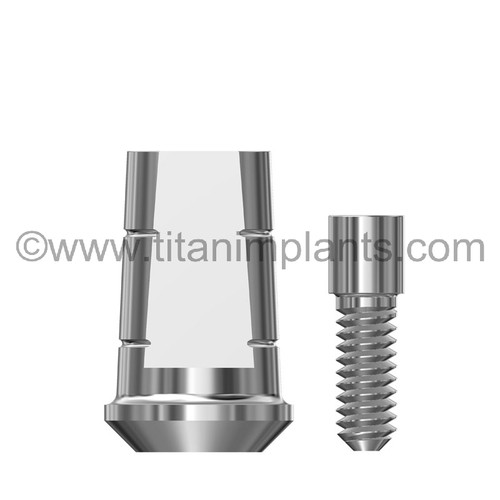

Straight Locking Abutment (SLIAF)

T-4SLIAF-IMZ

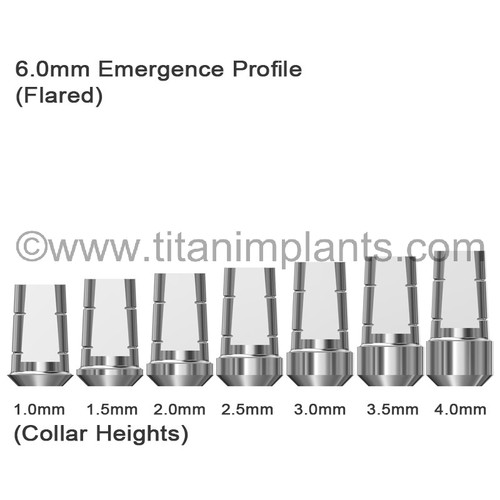

Profile 5.0 or 6.0 mmCollar 1.0–4.0 mm in 0.5 mm stepsPrep height 8 mm

Pick it when the margin must sit exactly at the tissue: collar heights come in half-millimeter steps.
Standard 5.0 or 6.0 mm emergence, with an 8 mm prep height you reduce to fit the crown.

Choose sizes →

Simple Step Abutment

T-4ESA-IMZ

Profile 4.1, 5.0 or 6.0 mmCollar 1–4 mmPrep height 4.0, 5.5 or 7.0 mm

Pick it when interarch space decides: a 4.0 mm prep for tight bites, 7.0 mm for long clinical crowns.
The 4.1 mm profile suits narrow sites where a flared emergence will not fit.

Choose sizes →

Screws, drivers and ball abutment accessories: see accessories

Found your part?In-stock parts ordered by 4:00 PM ET ship the same business day.

Not sure? Call 1-201-439-0470

More IMZ categories

IMZ Original, non-hex Accessories All IMZ

Do 3.3 mm and 4.0 mm IMZ Hex Head implants take different parts?

No. Both diameters have the same 2.7 mm external hex, so the same parts fit both.

How do I tell an IMZ Hex Head from an IMZ Original?

The Hex Head has a 2.7 mm external hex on top of the implant. The Original is flat on top with no hex, and its parts thread directly into the implant.

How fast do orders ship?

Orders placed by 4:00 PM ET ship the same day.
