Titan Implants Zimmer ZimVie TSV TSX Compatible Straight Locking Abutment 3.5mm Platform Internal Hex with Ti Screw 3.5mm Platform (GREEN) (3.7-4.1Ø TSV) (3.7-4.7Ø TSX) (P-3.5SLIAF-ZD)

ZimVie / Zimmer Dental TSV/TSX -compatible 3.5mm Internal Hex Straight Locking Abutment by Titan Implants
  • ZimVie / Zimmer Dental TSV/TSX -compatible 3.5mm Internal Hex Straight Locking Abutment by Titan Implants
  • ZimVie / Zimmer Dental TSV/TSX-compatible 3.5mm Internal Hex Straight Locking Abutment — alternate view — Titan Implants
  • ZimVie / Zimmer Dental TSV/TSX-compatible 3.5mm Internal Hex Straight Locking Abutment — complete set view — Titan Implants
  • ZimVie / Zimmer Dental TSV/TSX-compatible 3.5mm Internal Hex Straight Locking Abutment — complete set view — Titan Implants
  • ZimVie / Zimmer Dental-compatible 3.5mm Internal Hex Straight Locking Abutment — complete set view — Titan Implants
  • ZimVie / Zimmer Dental-compatible 3.5mm Internal Hex Straight Locking Abutment — complete set view — Titan Implants
Price:
$70.00
SKU:
P-3.5SLIAF-ZD
Brand:
Zimmer Biomet Compatible
Shipping:
Calculated at checkout
✓ USA-Made | ✓ Precision machined | ✓ Compatible with 20+ active & legacy systems | ✓ Same-day shipping available
Quantity:

*Click here for Terms and Conditions of FREE SHIPPING

Product Description

ZimVie TSX / TSV 3.5mm Platform Internal Hex Compatible Straight Locking Abutment

USA-machined · Ti-6Al-4V ELI (Grade 23) · widest dimensional range available in a compatible abutment

Precision-machined in the USA from Ti-6Al-4V ELI (Grade 23) titanium — the extra-low-interstitial alloy specified for demanding medical-implant applications.† Titan’s straight locking abutment pairs medical-grade material with the widest dimensional range available in a compatible abutment: profile diameters from 3.5–6.5mm and collar heights from 1.0–5.5mm in 0.5mm increments. Match emergence profile and soft-tissue height directly off the shelf — the fit of a custom abutment, without the lab time, turnaround, or cost of custom milling.

Key specifications

  • Ti-6Al-4V ELI (Grade 23) extra-low-interstitial titanium — the medical-implant grade†
  • Precision-machined in Bergenfield, New Jersey, USA — FDA-cleared
  • Straight (0°) design optimizes load distribution and biomechanical performance
  • Profile diameters 3.5–6.5mm for natural, tooth-specific emergence and proper proximal contacts
  • Collar heights 1.0–5.5mm in 0.5mm increments — a Titan exclusive
  • Precision internal hex for an accurate fit with minimal micro-gap and micro-movement
  • Titanium screw included for secure seating and reliable torque values
  • Titan Implant Locator Pin compatible — eases intraoral seating and allows minor angle correction with a straight abutment
  • Same-day shipping and dedicated support for dental professionals nationwide
  • Compatible with ZimVie TSV (3.7–4.1Ø) and TSX (3.7–4.7Ø), 3.5mm platform, internal hex

Why the dimensional range matters

Most stock abutments give you one or two sizes and force a compromise on emergence profile or tissue height. Titan’s full matrix of diameters and 0.5mm collar steps lets you fit the site precisely, off the shelf — semi-custom results at stock speed and stock cost, instead of sending the case out for a custom-milled abutment.

[  Emergence profile guide ] The four profile diameters (3.5 / 4.5 / 5.5 / 6.5mm) shown side by side.

Match emergence profile diameter to the tooth

DiameterBest for
3.5 mm Anterior teeth and very conservative premolars. Creates a gentle, natural flare.
4.5 mm Most versatile. Excellent for premolars and some small molars. Strong esthetics and hygiene.
5.5 mm Premolars and molars needing moderate width. Balances contour and cleansability.
6.5 mm Larger molars or wide emergence needs. Supports broad occlusal tables and strong proximal contacts.


Clinical benefits

  • Match individual patient anatomy without the cost or turnaround of a custom-milled abutment.
  • Better esthetics, hygiene access, and long-term soft-tissue stability.
  • Predictable, repeatable seating that reduces adjustments, remakes, and chair time.
  • Ideal for anterior through molar restorations — select profile diameter to the site.

Tips for selecting profile and collar height

  • Start from the healing abutment already in place — its profile and height often guide the final choice.
  • Use the Titan Implant Locator Pin to verify parallelism and available height before final selection.
  • Give your lab the implant platform size, soft-tissue thickness, desired margin position, and photos/radiographs.
  • When in doubt, choose a slightly taller collar or wider profile — it’s easier to adjust than to add material later.

Recommended accessory: Titan Implant Locator Pin

A straight threaded pin with a serrated handle that makes intraoral seating easier when visibility or access is limited — the impression coping or abutment slides over the pin and locks in place from the snug fit of the head, then the pin is removed and replaced by the appropriate screw. It also checks parallelism and implant positioning intraorally, and simplifies custom abutment fabrication in the lab. With the locator pin in place, minor angles can be corrected while still using a straight abutment.

For ZimVie TSV & TSX implants, use Titan Implant Locator Pin (1-72-ILP-22). View all locator pins at titanimplants.com/titan-implants-locator-pins.

[ Implant Locator Pin in use ] The locator pin with abutment sliding over the head.

Instructional videos

VIDEO #3

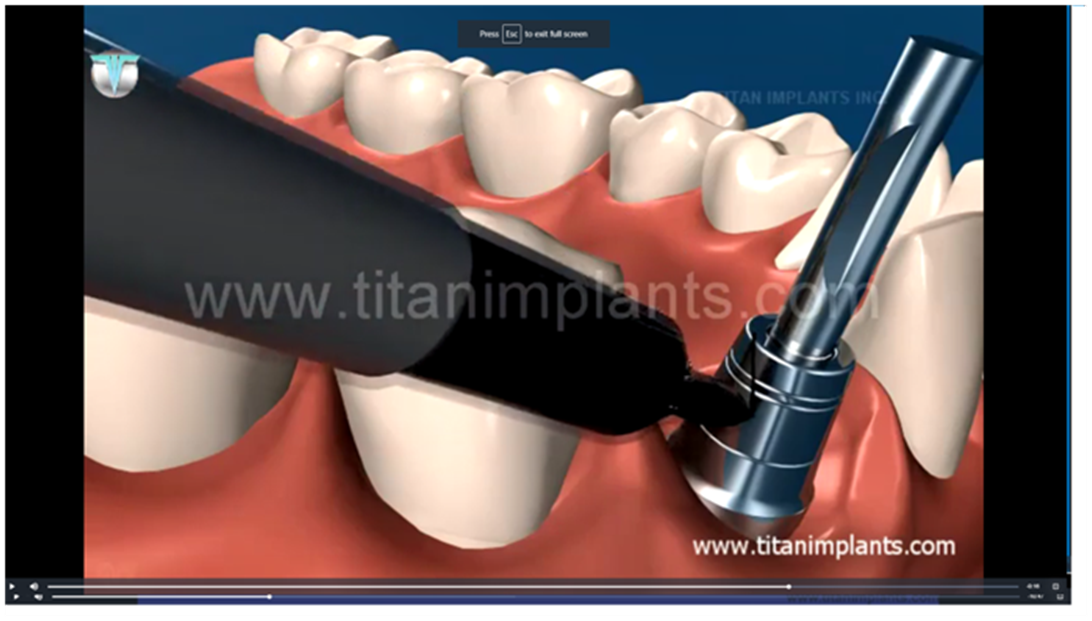

Creating an emergence profile using a Titan stock abutment and the Implant Locator Pin.

Watch on Educational Videos ›
VIDEO #5

Restoring a Zimmer dental implant with Titan open-tray impression and final abutment.

Watch on Educational Videos ›

Quality Guarantee. Titan abutments are warranted against defects in materials and workmanship. If a product doesn’t meet our specifications, we’ll replace it or credit your account. See our Terms and Conditions of Sale for details.

Product notes. Available in locking (engaging) only — see Bar Post SKU #P-35CA-12-ZD for a non-engaging option. This product uses a 0.050″ hex screwdriver.





RECOMMENDED ACCESSORY



 Titan Implants’ Implant Locator Pin is a straight threaded pin with a serrated handle designed for several practical uses:



Implant Locator Pin instruction video: https://titanimplants.com/educational-videos/

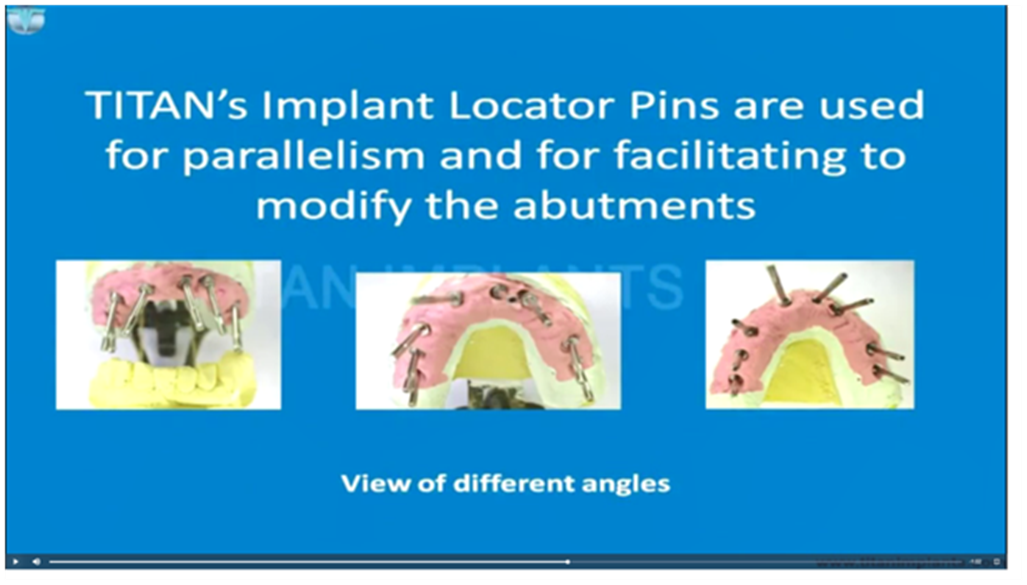

 At times, it may be difficult to insert an impression coping or abutment intraorally due to impaired visibility or access. The implant locator is easier to screw into the implant. Once inserted, by hand, the impression coping or abutment will slide over the pin and lock in place because of the snug fit of the head. Then the implant locator pin is removed and replaced by the appropriate screw.



 The implant locator pin can be used to check for parallelism and positioning of the implants intraorally. This can be done in the lab too. In the lab, the implant locator pin is convenient for custom abutment fabrication. Simple slide the plastic sleeve down the implant locator pin and proceed to wax-up to the appropriate gingival height. The ease of sliding the abutment on and off saves time and simplifies lab work. (This can be actually done in the mouth)



 The implant locator pin comes in three different lengths and different threads to match various manufacturers.



 All implant locator pins are listed here: https://titanimplants.com/titan-implants-locator-pins/



 For ZimVie TSV & TSX implants, use Titan Implant Locator Pin(1-72-ILP-22)











 With the help of the implant locator pin, minor angles can be corrected while still using straight abutments.



Other Details

Implant Manufacturer:
ZimVie / Zimmer Dental
Implant System:
Internal Hex
Platform Diameter:
3.5mm
Abutment Type:
Straight Locking Abutment
