Please see instructional video#1 (1. Restore TG Solid Abutment Wide Neck Straumann Compatible) on how to use the solid abutment:

Titan Implants' Solid Abutment can be used for Straumann® RN & WN Tissue Level implants that have no octagon, just an internal non-engaging circular geometry or if the dentist does not want to engage the internal octagon of the current Straumann® SynOcta®  implant.  Since there are no implant level analogs or impression copings for the circular non-engaging Tissue Level implants, restore the implant by torquing in the solid abutment and taking an abutment impression using the solid abutment transfer cap. Please click here for corresponding solid abutment parts.

The Titan solid abutment has ring grooves designed for mechanical restoration. The solid abutment comes in two different shapes. One has a flat side with mechanical grooves and the other is called the Titan Design which has a hex instead of a flat, offering better crown retention. Both work well, we recommend the Titan Design solid abutments.

HOW TO CHOOSE A PREP HEIGHT:

• Three Prep Heights (4 mm, 5.5 mm, 7 mm) These graduated preparation heights give you precise control over the occlusal clearance and crown height.
• 4 mm: Ideal for limited interocclusal space or shallow preparations.
• 5.5 mm: Most commonly used for standard cases.
• 7 mm: Provides extra height for deep soft tissue or when more retention is needed. This range reduces the need for excessive chairside grinding or adding material, saving time and preserving abutment strength.

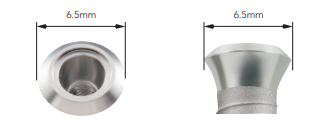

 Note: This Titan Implants 6.5mm Platform WN Solid Abutment uses a 0.050" Hex Screw Driver.

0.050'' (1.27mm) Hex Screw Driver

To fit original Straumann torque wrench:

0.050'' Hex Driver can be used with the Titan Straumann Torque Wrench Adaptor

SKU#IS-TWSHA:

OR

0.050'' Hex Driver can be used To fit Nobel Biocare torque wrench:

 Titan Nobel Biocare wrench adaptor

SKU: NB-TWSHA:
