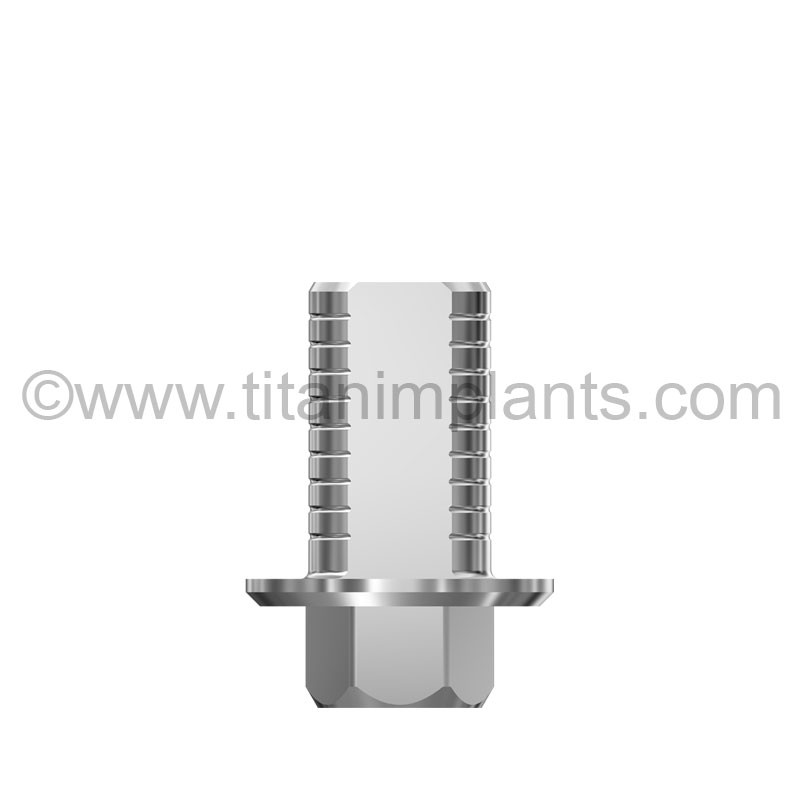

Titanium Base Abutment compatible with Zimmer Tapered Screw-Vent® (TSV/TSX) Internal Hex 5.7mm Platform — Engaging or Non-Engaging (TP-57TB)

  • ZimVie / Zimmer Dental-compatible 5.7mm Internal Hex Titanium Screw by Titan Implants
  • ZimVie / Zimmer Dental-compatible 5.7mm Internal Hex Titanium Screw — angled view — Titan Implants
  • ZimVie / Zimmer Dental-compatible 5.7mm Internal Hex Titanium Screw — product icon — Titan Implants
  • ZimVie / Zimmer Dental-compatible 5.7mm Internal Hex Titanium Screw — close-up view — Titan Implants
  • ZimVie / Zimmer Dental-compatible 5.7mm Internal Hex Titanium Screw — additional view — Titan Implants
Price:
$20.00
SKU:
TP-57TB
Availability:
Usually ships in 24 hours
Shipping:
Calculated at checkout
✓ USA-Made | ✓ Precision machined | ✓ Compatible with 20+ active & legacy systems | ✓ Same-day shipping available


*Click here for Terms and Conditions of FREE SHIPPING

Product Description

What it is. A titanium base is a short metal cylinder that seats on the implant and provides the machined connection. A zirconia or ceramic crown is designed digitally and then bonded onto it, so the precision interface is metal while the visible part is tooth-coloured. It is the standard foundation for a digitally designed restoration.

How to use it

  1. Scan the implant position with a scan body.
  2. Design the restoration digitally against the base geometry.
  3. Mill the zirconia or ceramic.
  4. Bond it to the titanium base with a suitable resin cement.
  5. Screw the bonded restoration onto the implant and seal the access channel.

Watch the instruction videos for this system →

About this particular size

  • Finish options: Uncoated, Ti-Nitride.
  • Supplied as: Locking, Non-Locking.
  • Engaging — it indexes to the implant’s hex so the restoration cannot rotate. Use it for single crowns.
  • Surface preparation and the correct bonding agent determine how well the ceramic holds to the base.

Material: Grade 23 ELI titanium (Ti-6Al-4V ELI, ASTM F136) · Driver: 0.050" (1.27mm) hex · Machined at our facility in Bergenfield, New Jersey · Compatible with Zimmer Dental / ZimVie Screw-Vent / TSV / TSX 5.7mm.

Also useful: the Titan Implant Locator Pin threads into the implant so the abutment slides over it and seats before you place the screw. It also lets you check implant parallelism. It is a seating tool, not an impression device, and it does not work with solid abutments, which have no through hole.

Other Details

Component Type:
Titanium Base
Implant System:
Screw-Vent / TSV / TSX
Implant Manufacturer:
Zimmer Dental / ZimVie
Engagement:
Engaging
Engagement:
Non-Engaging
Implant Diameter / Prosthetic Connection:
5.7mm
Implant Diameter / Prosthetic Connection:
6.0mm
