• Compatibility: Nobel Biocare Ext Hex, 6.0mm platform
• Component: Straight Locking Abutment
• Material: Grade 23 ELI titanium (Ti-6Al-4V ELI), ASTM F136
• Includes: Titanium screw included
• Manufactured by: Titan Implants, Inc. — Bergenfield, New Jersey, USA

For non-engaging titanium option, please see SKU: SR-6CA-12

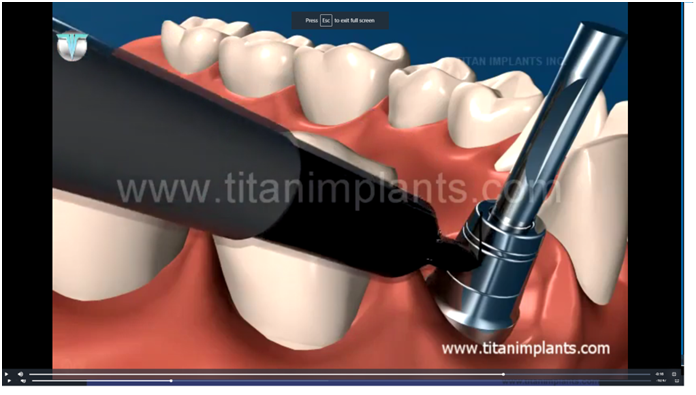

 3. How to create emergence profile by using Titan Implants' stock abutment with Titan Implant Locator Pin

1. Open Tray Implant Impression Technique and Final Restoration For Nobel Biocare Compatible Branemark Implants

• Titan’s abutments carry a wide range of emergence profiles which

  contribute to a natural restoration.

  Different cuff heights from 1.0mm to 5.5mm in 1/2mm increments. (Titan EXCLUSIVE)

•  Choosing the Proper Collar Height

  • Measure the distance between the implant platform and the crest of the gingival on the lingual and the buccal. Choose the highest number. Note: Usually the buccal is the

    highest number. Subtract ½ or 1mm from this number. This will ensure that the collar is slightly below the crest of the gingiva. Choose the closest collar height from the chart.

    If the collar height is different between the buccal and lingual and you wish to follow the

    contour of the gingiva, modify the collar appropriately.

    TIP: The best results are obtained taking a tissue model impression of the implant using a

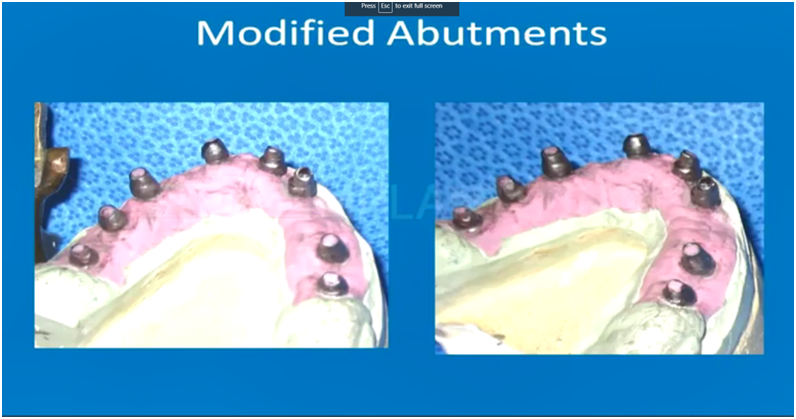

    transfer coping. The lab can then easily choose and modify the proper abutment for the available space.

•

   Note: This product uses a 0.050" Hex Screw Driver.



 To fit original Straumann torque wrench:

  0.050'' Hex Driver can be used with the Titan Straumann Torque Wrench Adaptor SKU#IS-TWSHA

 OR

 To fit original Nobel Biocare torque wrench  0.050'' Hex Driver can be used with Titan Nobel Biocare wrench adaptor SKU: NB-TWSHA

 Recommended torque wrench: TW35 35Ncm

Recommended Accessory

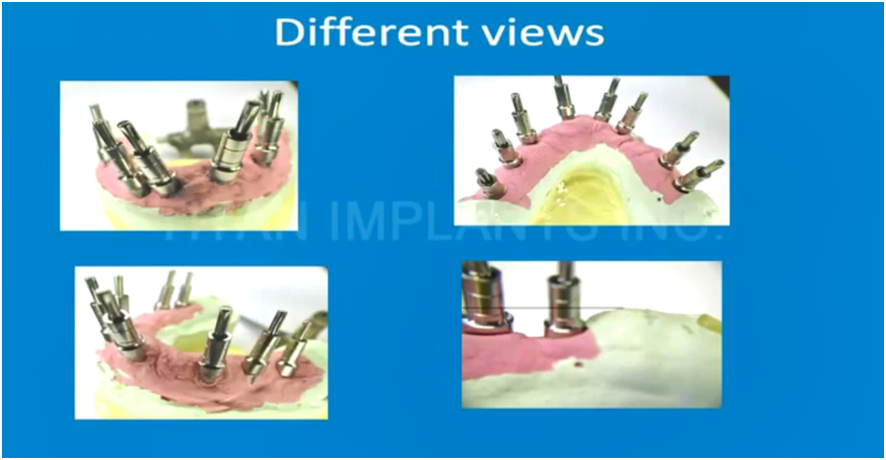

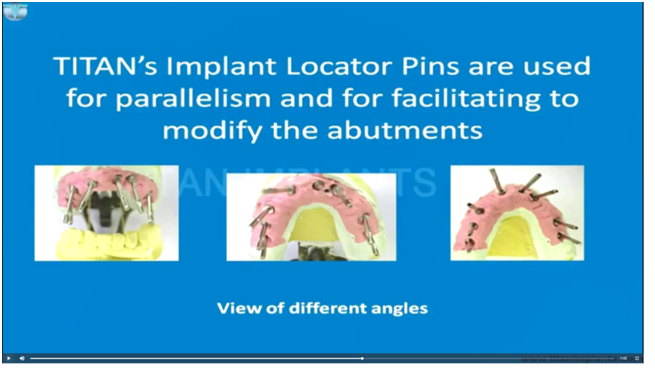

The Titan Implant Locator Pin seats components where access is restricted and checks implant parallelism. See it in use.

Shipping: ships in 1–2 business days from our Bergenfield, New Jersey facility. Free shipping on orders over $199.

Implant Locator Pin (+$15 each) — seats on the implant or analog to measure tissue depth and guide the abutment into position. Titan-exclusive design; optimal use is one per abutment, reusable across cases. See the Implant Locator Pin in use.

See the technique: See how to create an emergence profile with a Titan stock abutment
