Innova Compatible 3.5mm External Hex Straight Implant Abutments With Titanium Screw (IP-3.5SLIAF)

3. How to create emergence profile by using Titan Implants' stock abutment

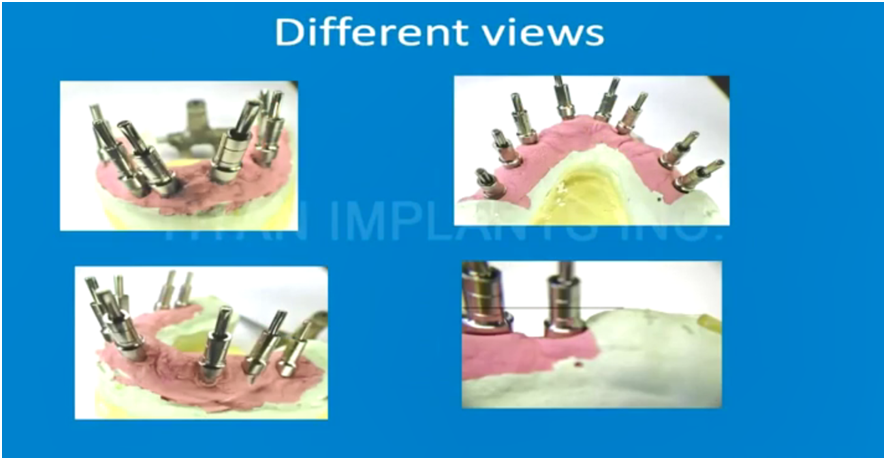

1. Restoring Innova Corp. 4.1mm External Hex Compatible implant using Open Tray Implant Impression Coping and Straight Locking Implant Abutment Flat.

See SKU#SR-IP-35CA-12 for non-engaging option

Titan’s abutments carry a wide range of emergence profiles which

contribute to a natural restoration.

Different cuff heights from 1.0mm to 5.5mm in 1/2mm increments. (Titan EXCLUSIVE)

Note: This product uses a 0.050" Hex Screw Driver.

 Choosing the Proper Collar Height

• Measure the distance between the implant platform and the crest of the gingival on the lingual and the buccal. Choose the highest number. Note: Usually the buccal is the

  highest number. Subtract ½ or 1mm from this number. This will ensure that the collar is slightly below the crest of the gingiva. Choose the closest collar height from the chart.

  If the collar height is different between the buccal and lingual and you wish to follow the

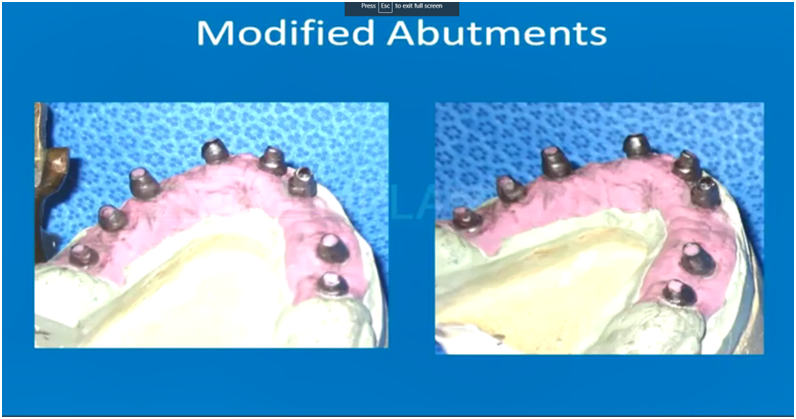

  contour of the gingiva, modify the collar appropriately.

  TIP: The best results are obtained taking a tissue model impression of the implant using a

  transfer coping. The lab can then easily choose and modify the proper abutment for the available space.



•

Recommended Accessory

The Titan Implant Locator Pin seats components where access is restricted and checks implant parallelism. See it in use.

See the technique: See how to create an emergence profile with a Titan stock abutment
