Osteo Implant Corporation Compatible

OIC (Osteo Implant Corporation) compatible parts

External hex abutments, healing abutments, impression copings, analogs and lab parts for OIC Standard (Universal) and Wide Diameter 5.0 mm implants. Pick your platform.

Call 1-201-439-0470

Shop by part

Healing abutment

Cover screw

Straight locking abutment

Simple Step abutment

Check before you order: pick by the implant diameter. 3.25, 3.75 and 4.0 mm OIC implants take Standard (Universal) parts; 5.0 mm implants take Wide Diameter parts.

Ships todayOrders by 4:00 PM ET ship same business day
Made in the USAMachined in Bergenfield, NJ
FDA-clearedCompatible prosthetic components
Since 2000Help matching parts: 1-201-439-0470

Standard (Universal) platform

For OIC 3.25, 3.75 and 4.0 mm external hex implants.

Healing abutmentT-4HA-OIC

Cover screwT-4HA-A-1.0-OIC

Straight locking abutmentT-4SLIAF-OIC

Simple Step abutmentT-4ESA-OIC

Post abutmentT-4PA-OIC

Post abutment, bite registrationT-4PABR-OIC

Temporary abutment, engaging / non-engagingT-4TA-OIC

Impression coping, guide pin, 6.0 mm profileT-4IIC-OIC

Impression post, closed trayTN-4OPIP-OIC

Implant analogT-4IAT-OIC

Plastic sleeve, engaging / non-engagingT-4PS-OIC

Ball head abutmentT-4BHA-OIC

Bar post (laser-weld)NB-4CA-12-OIC

Multi-unit abutment, engagingNB-MCAS-OIC

Multi-unit abutment analogNB-3.3/4.0MCR

Ball head analogSRS-43BHAA

Transmucosal standard abutment and lab parts

Transmucosal standard abutmentBM-4TSA-OIC

Standard abutment analogT-4SAA-OIC

Standard abutment impression copingT-4SAIC-OIC

Standard abutment plastic sleeveT-4SAPS-OIC

Standard abutment bar post (laser-weld)T-4SABP-OIC

Wide Diameter 5.0 mm platform

For OIC 5.0 mm external hex implants.

Ball head analogSRS-43BHAA

Healing abutmentLC-5HA-OIC

Straight locking abutment, 6.0 mm profileLC-5SLIAF-OIC

Impression coping, open or closed trayLC-5IIC-OIC

Implant analogLC-5IA-OIC

Plastic sleeve, engaging / non-engagingLC-5PS-OIC

Ball head abutmentNB-5EBHA-1.0-OIC

Ball head analogNB-5EBHAA-OIC

Straight Locking or Simple Step?

Both are straight, engaging titanium abutments for the OIC Standard (Universal) platform. What differs is what you choose.

Straight Locking Abutment (SLIAF)

T-4SLIAF-OIC

Profile 5.0 or 6.0 mmCollar 1.0–4.0 mm in 0.5 mm stepsPrep height 8 mm

Pick it when the margin must sit exactly at the tissue: collar heights come in half-millimeter steps.
Standard 5.0 or 6.0 mm emergence, with an 8 mm prep height you reduce to fit the crown.

Choose sizes →

Simple Step Abutment

T-4ESA-OIC

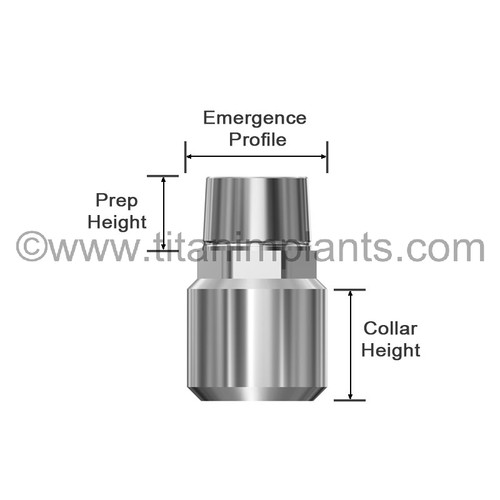

Profile 4.1, 5.0 or 6.0 mmCollar 1–4 mmPrep height 4.0, 5.5 or 7.0 mm

Pick it when interarch space decides: a 4.0 mm prep for tight bites, 7.0 mm for long clinical crowns.
The 4.1 mm profile suits narrow sites where a flared emergence will not fit.

Choose sizes →

Drivers, screws, guide pins, locator pins and ball head accessories: see OIC accessories

Found your part?In-stock parts ordered by 4:00 PM ET ship the same business day.

Not sure? Call 1-201-439-0470

More OIC categories

Standard (Universal) parts Wide Diameter 5.0 mm parts OIC accessories Abutment sizing guide

Which OIC parts fit my implant?

Go by the implant diameter: 3.25, 3.75 and 4.0 mm OIC external hex implants take the Standard (Universal) parts, and 5.0 mm implants take the Wide Diameter parts.

Straight locking or Simple Step abutment?

Both are straight, engaging abutments. The straight locking abutment gives half-millimeter collar choices; Simple Step lets you choose a 4.0, 5.5 or 7.0 mm prep height and a narrow 4.1 mm profile.

Which drivers do I need?

The cover screw uses a 0.035″ hex driver, available with the screw. The Wide Diameter 5.0 mm healing abutment requires a 0.050″ hex driver.

How fast do orders ship?

Orders placed by 4:00 PM ET ship the same day.

OIC and Osteo Implant Corporation names are used only to identify compatibility. Titan Implants, Inc. is not affiliated with or endorsed by Osteo Implant Corporation.
