TITAN IMPLANTS EXCLUSIVE PATENTED PRODUCT:

 Please click below for instruction video:

 Implant Locator Pin

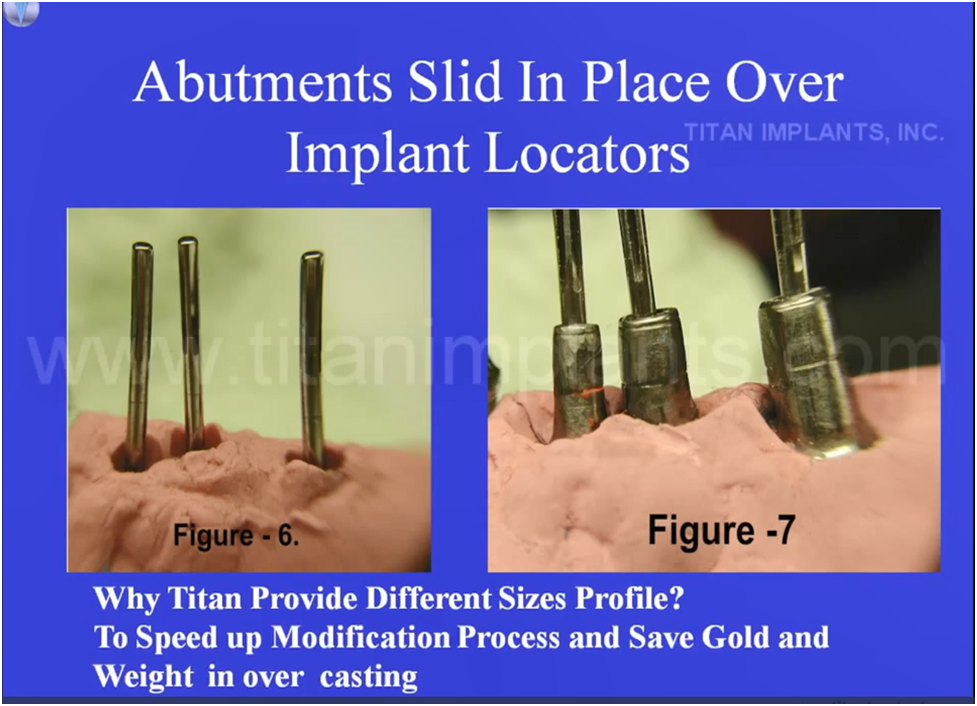

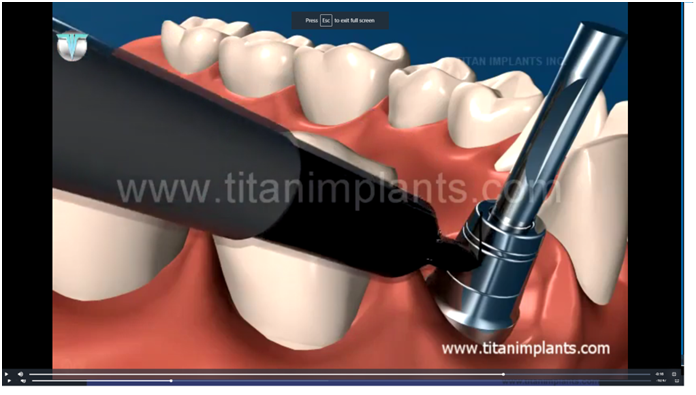

 At times, it may be difficult to insert an impression coping or abutment intraorally due to impaired visibility or access. The implant locator is easier to screw into the implant. Once inserted, by hand, the impression coping or abutment will slide over the pin and lock in place because of the snug fit of the head. Then the implant locator pin is removed and replaced by the appropriate screw.

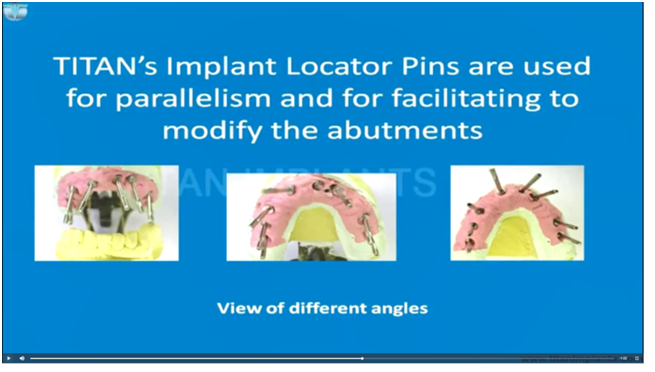

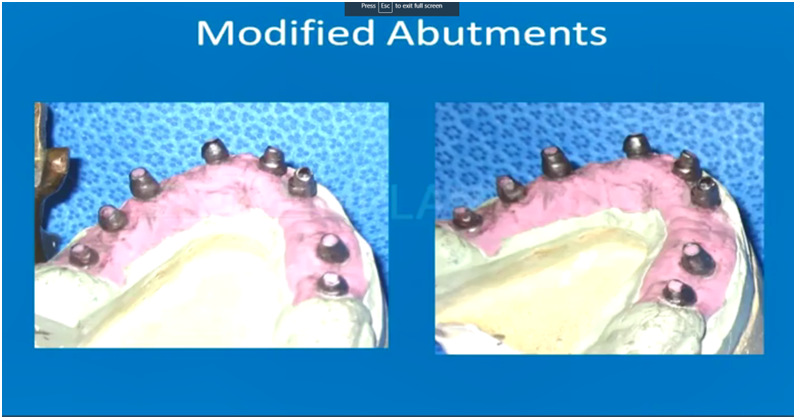

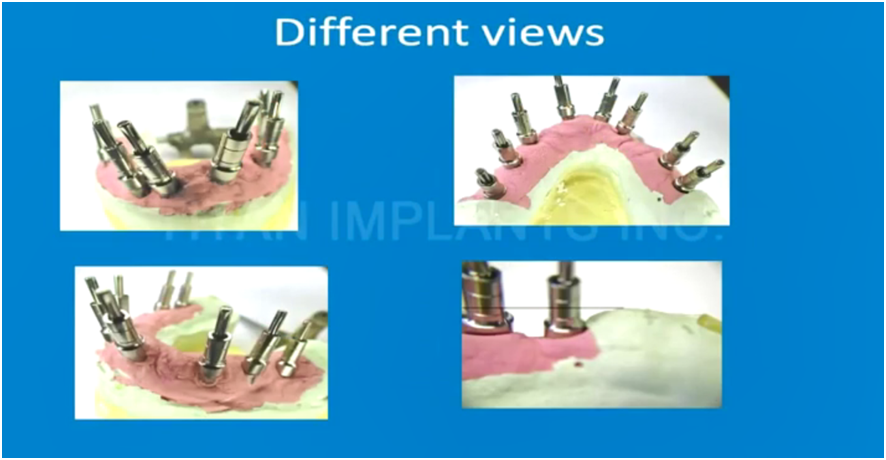

 The implant locator pin can be used to check for parallelism and positioning of the implants intraorally. This can be done in the lab too. In the lab, the implant locator pin is convenient for custom abutment fabrication. Simply slide the plastic sleeve down the implant locator pin and proceed to wax-up to the appropriate gingival height. The ease of sliding the abutment on and off saves time and simplifies lab work. (This can be actually done in the mouth)

The implant locator pin comes in three different lengths and different threads to match various manufacturers.

 With the help of the implant locator pin, minor angles can be corrected while still using straight abutments.

Can be used with the following popular implant systems and platform diameter sizes:

- ZimVie 3i Certain

- Nobel Biocare Branemark NP

- Nobel Biocare Conical Connection NP

- Astra TX Osseospeed Aqua

- Friadent XIVE, Frialit

- Straumann Bone Level
