 Titan’s Straight Locking Implant Abutments are machined with careful precision, which ensures a consistent and accurate fit into the implant.

• This fit helps eliminate micro-movement. Titan’s abutments carry a wide range of emergence profiles which

  contribute to a natural restoration.

  Horizontal grooves assist in height measurements and adjustments, and also significantly increases cement retention while still allowing retrievability.

  Different cuff heights from 1.0mm to 5.5mm in 1/2mm increments. (Titan EXCLUSIVE)

•

   Note: This product uses a 0.050" Hex Screw Driver.



  0.050'' (1.27mm) Hex Screw Driver



 To fit original Straumann torque wrench:

  0.050'' Hex Driver can be used with the Titan Straumann Torque Wrench Adaptor SKU#IS-TWSHA

 OR

 To fit original Nobel Biocare torque wrench  0.050'' Hex Driver can be used with Titan Nobel Biocare wrench adaptor SKU: NB-TWSHA

 Recommended torque wrench: TW35 35Ncm

RECOMMENDED ACCESSORY

 Titan Implants’ Implant Locator Pin (click for instruction video) is a straight threaded pin with a serrated handle designed for several practical uses:

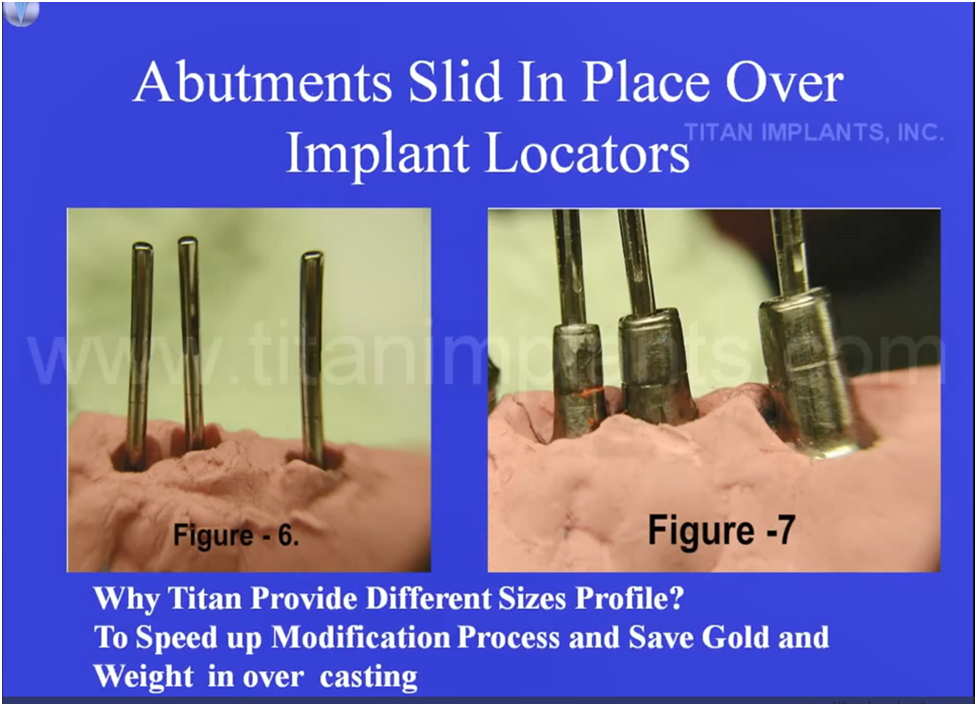

 At times, it may be difficult to insert an impression coping or abutment intraorally due to impaired visibility or access. The implant locator is easier to screw into the implant. Once inserted, by hand, the impression coping or abutment will slide over the pin and lock in place because of the snug fit of the head. Then the implant locator pin is removed and replaced by the appropriate screw.

 The implant locator pin can be used to check for parallelism and positioning of the implants intraorally. This can be done in the lab too. In the lab, the implant locator pin is convenient for custom abutment fabrication. Simple slide the plastic sleeve down the implant locator pin and proceed to wax-up to the appropriate gingival height. The ease of sliding the abutment on and off saves time and simplifies lab work. (This can be actually done in the mouth)

 The implant locator pin comes in three different lengths and different threads to match various manufacturers. Click here for list of implant locator pins.

 Corresponding implant locator pin with SteriOss NP compatible Titan abutment: Titan Implant Locator Pin (1-72-ILP-22)

With the help of the implant locator pin, minor angles can be corrected while still using straight abutments.
