Note: This product uses a 0.050" Hex Screw Driver.

0.050'' (1.27mm) Hex Screw Driver

Please click on below instruction video on taking an implant impression using the implant locator pin:

2. Titan Implants' Taking Open Tray Impression Case Study

RECOMMENDED ACCESSORY :

TITAN IMPLANT LOCATOR PIN (CLICK THIS LINK FOR INSTRUCTION VIDEO)

At times, it may be difficult to insert an impression coping or abutment intraorally due to impaired visibility or access. The implant locator is easier to screw into the implant. Once inserted, by hand, the impression coping or abutment will slide over the pin and lock in place because of the snug fit of the head. Then the implant locator pin is removed and replaced by the appropriate screw.

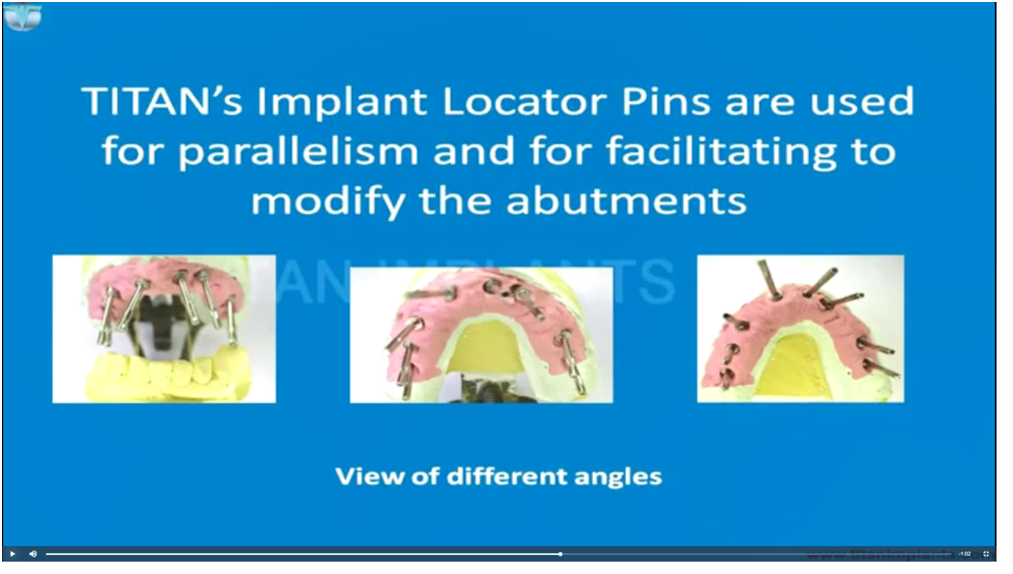

The implant locator pin can be used to check for parallelism and positioning of the implants intraorally. This can be done in the lab too. In the lab, the implant locator pin is convenient for custom abutment fabrication. Simple slide the plastic sleeve down the implant locator pin and proceed to wax-up to the appropriate gingival height. The ease of sliding the abutment on and off saves time and simplifies lab work. (This can be actually done in the mouth)

The implant locator pin comes in three different lengths and four different threads to match various manufacturers.

Implant Locator Pin to restore Lifecore External Hex RD implants: M2-ILP-20
