Please see Instruction Video#2:

2. How To Do An Overdenture Restoration of Calcitek Integral Spline Compatible Implants With Bar Posts For Laser-Welding

 Link: https://titanimplants.com/calcitek-compatible-videos/

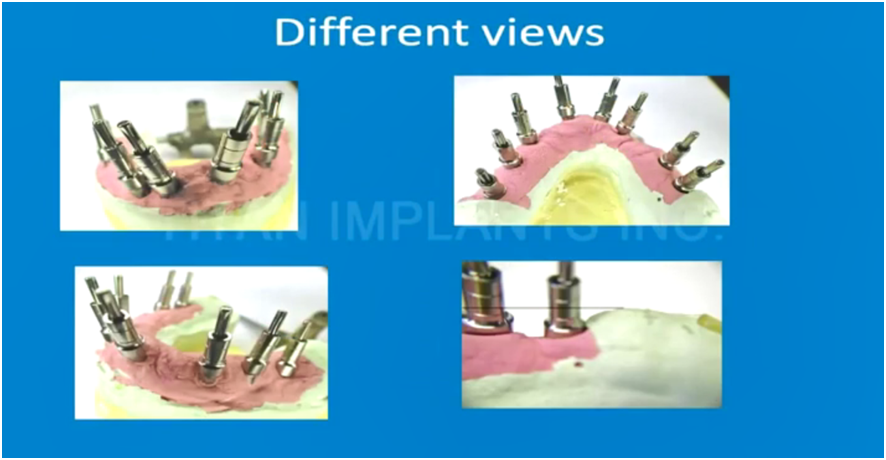

Bar post abutments are titanium, non-engaging cylindrical posts are designed to seat directly into the implant or intermediate abutment that are laser-welded to titanium bars to create an all titanium bar or bridge framework. Implant bar restorations mostly have a minimum of two to five implants. In an ideal situation, hader bar and retentive clips are used in the anterior, whereas locking pin attachments are located distally for support and stability. The laser-welding technique eliminates the need for casting, waxing, investing, and finishing. The ideal implant bar system incorporates a bar and retentive clips in the anterior section and locking pin attachments distally for support and stability.

Note: This product uses a  0.050" Hex Screw Driver.

0.050'' (1.27mm) Hex Screw Driver

RECOMMENDED ACCESSORY: TITAN IMPLANTS LOCATOR PIN

Titan Implants’ Implant Locator Pin is a straight threaded pin with a serrated

handle designed for several practical uses:

At times, it may be difficult to insert an impression coping or abutment

intraorally due to impaired visibility or access. The implant locator is easier to screw into the implant. Once inserted, by hand, the impression coping or abutment will slide over the pin and lock in place because of the snug fit of the head. Then the implant locator pin is removed and replaced by the

appropriate screw.

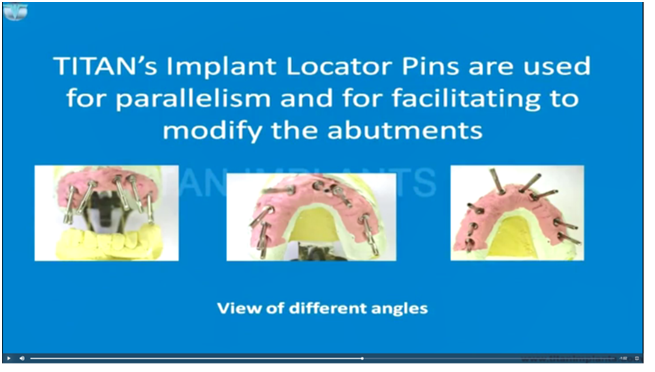

The implant locator pin can be used to check for parallelism and positioning of the implants intraorally. This can be done in the lab too. In the lab, the implant locator pin is convenient for custom abutment fabrication. Simply slide the plastic sleeve down the implant locator pin and proceed to wax-up to the appropriate gingival height. The ease of sliding the abutment on and off saves time and simplifies lab work. (This can be actually done in the mouth)

The implant locator pin comes in three different lengths and different threads to match various manufacturers.
