•  Can be used as a transfer and subsequently adjusted in the lab to become the final abutment
•  Tighter and precise fit
•  Eliminates extra expense & unnecessary parts
•  No need for expensive lab-processed gold custom abutments
•  Comes with titanium screw

See Instructional Video#1: "1. Using Abutment Impression Coping compatible with Frialit and Xive(TG) Implants"

https://titanimplants.com/friadent-compatible-videos/

• Titan Implants’ Implant Locator Pin is a straight threaded pin with a serrated handle designed for several practical uses:



  At times, it may be difficult to insert an impression coping or abutment intraorally due to impaired visibility or access. The implant locator is easier to screw into the implant. Once inserted, by hand, the impression coping or abutment will slide over the pin and lock in place because of the snug fit of the head. Then the implant locator pin is removed and replaced by the appropriate screw.

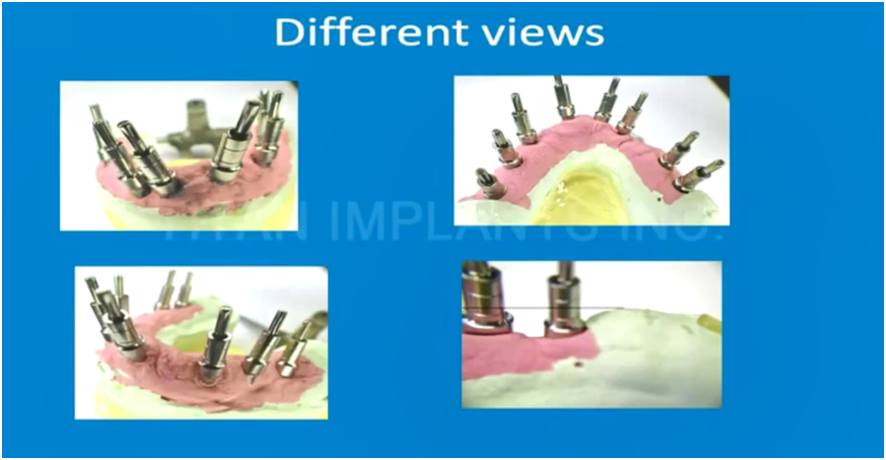

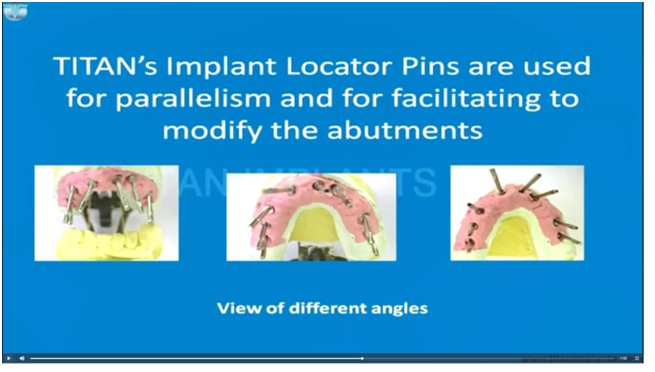

  The implant locator pin can be used to check for parallelism and positioning of the implants intraorally. This can be done in the lab too. In the lab, the implant locator pin is convenient for custom abutment fabrication. Simple slide the plastic sleeve down the implant locator pin and proceed to wax-up to the appropriate gingival height. The ease of sliding the abutment on and off saves time and simplifies lab work. (This can be actually done in the mouth)



  The implant locator pin comes in three different lengths and different threads to match various manufacturers.



  All implant locator pins are listed here: https://titanimplants.com/titan-implants-locator-pins/



  Implant Locator Pin instruction video: https://titanimplants.com/educational-videos/

  For Friadent XIVE/Frialit compatible implant abutment, use Titan Implant Locator Pin( Titan Implant Locator Pin (M1.6-ILP-22)

Note: This product requires purchase of 0.050" Hex Screw Driver.

0.050'' (1.27mm) Hex Screw Driver
