RECOMMENDED ACCESSORY

  Titan Implants’ Implant Locator Pin (click link for video)

Please see Instruction Videos here:

3. How to create emergence profile by using Titan Implants' stock abutment and Titan Implant Locator Pin

 1. Open Tray and Final Restoration Technique For Astra Tech Compatible TX System

 Titan’s Straight Locking Implant Abutments are machined with careful precision, which ensures a consistent and accurate fit into the implant.

This fit helps eliminate micro-movement. Titan’s abutments carry a wide range of emergence profiles which

contribute to a natural restoration.

Horizontal grooves assist in height measurements and adjustments, and also significantly increases cement retention while still allowing retrievability.

Note: This product uses a 0.050" Hex Screw Driver.

0.050'' (1.27mm) Hex Screw Driver

RECOMMENDED ACCESSORY

 Titan Implants’ Implant Locator Pin is a straight threaded pin with a serrated handle designed for several practical uses:

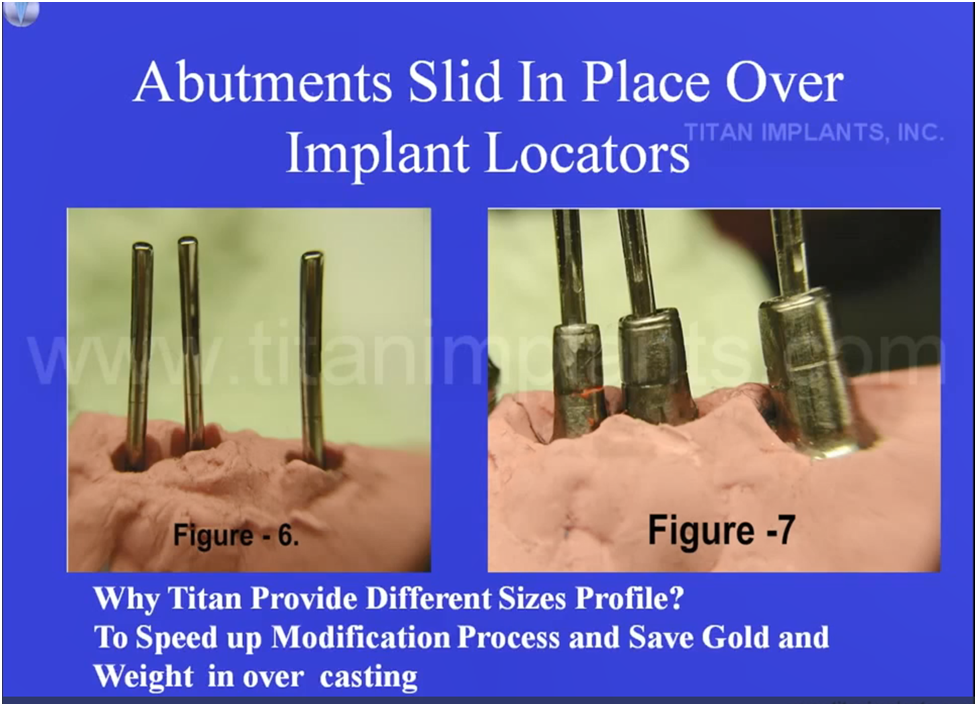

At times, it may be difficult to insert an impression coping or abutment intraorally due to impaired visibility or access. The implant locator is easier to screw into the implant. Once inserted, by hand, the impression coping or abutment will slide over the pin and lock in place because of the snug fit of the head. Then the implant locator pin is removed and replaced by the appropriate screw.

 The implant locator pin can be used to check for parallelism and positioning of the implants intraorally. This can be done in the lab too. In the lab, the implant locator pin is convenient for custom abutment fabrication. Simple slide the plastic sleeve down the implant locator pin and proceed to wax-up to the appropriate gingival height. The ease of sliding the abutment on and off saves time and simplifies lab work. (This can be actually done in the mouth)

The implant locator pin comes in three different lengths and different threads to match various manufacturers.

 All implant locator pins are listed here:

For 4.5/5.0mm TX Internal Hex implants, use: Titan Implant Locator Pin (M2-ILP-20)

With the help of the implant locator pin, minor angles can be corrected while still using straight abutments.
